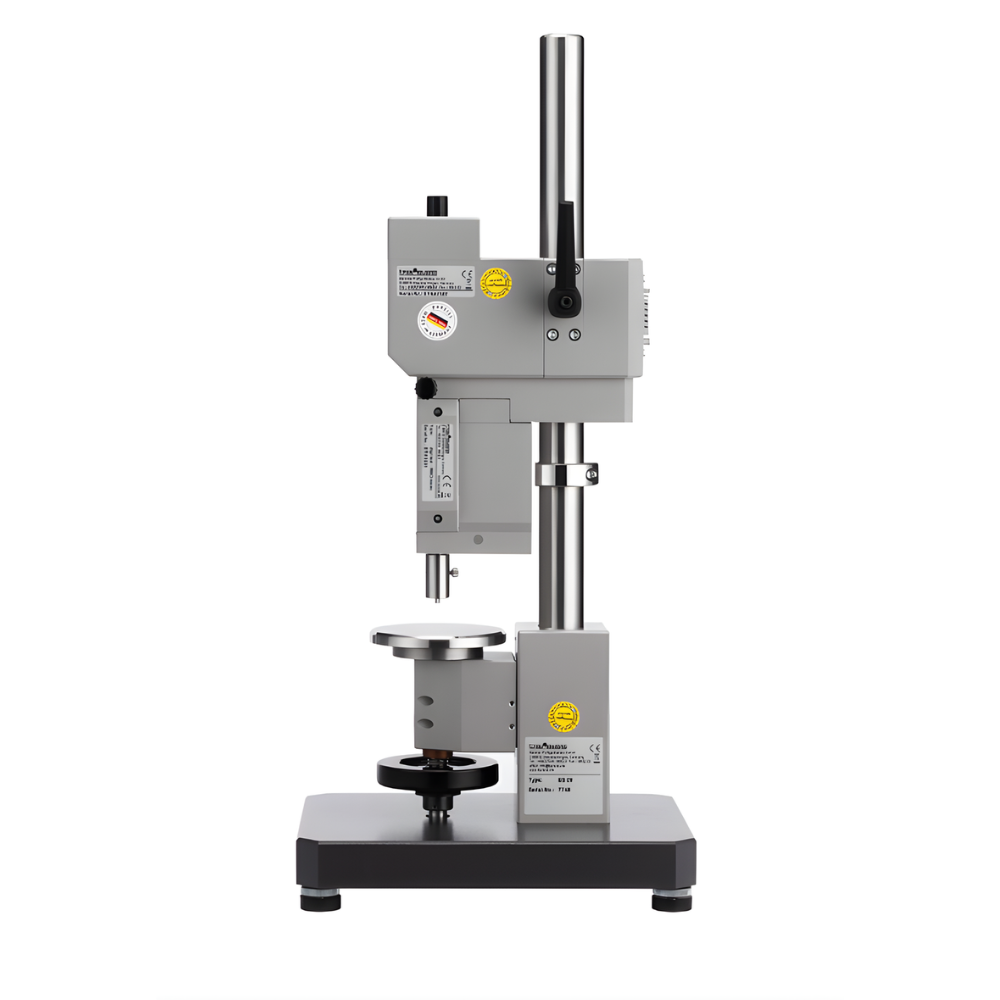

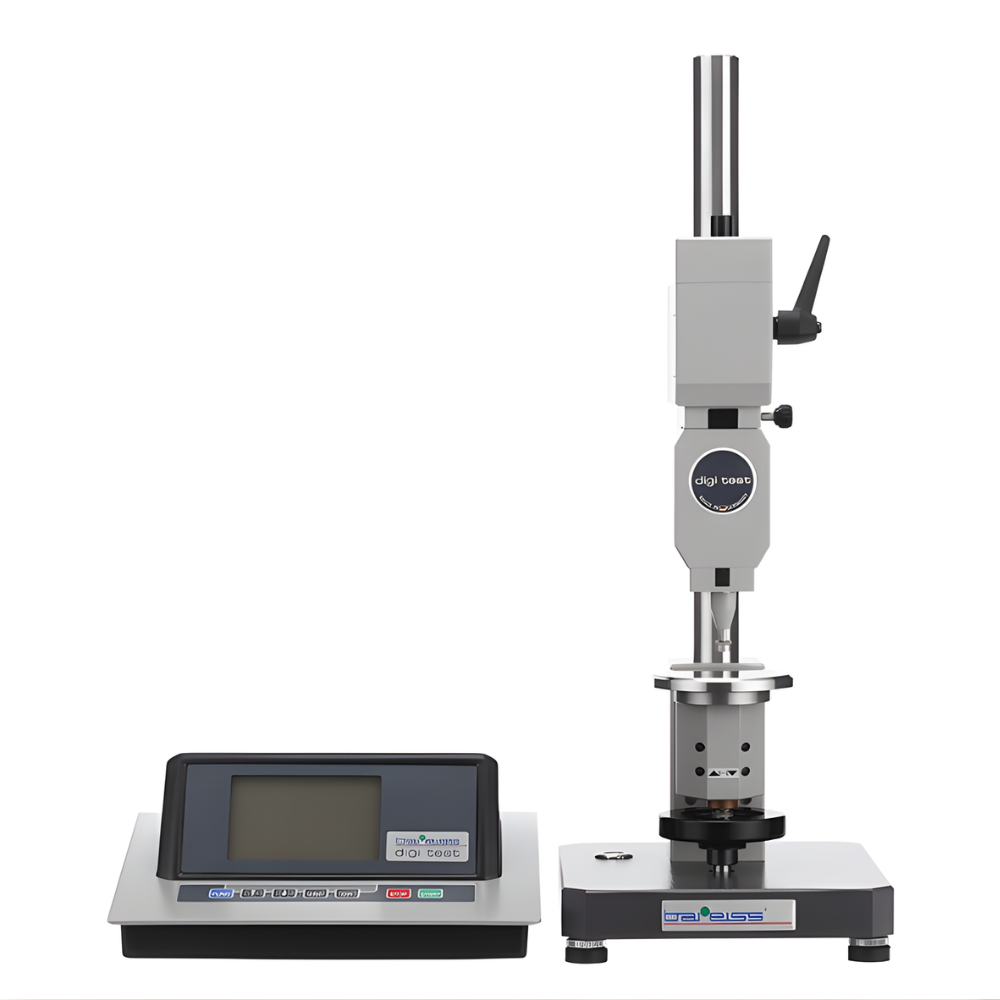

Automatic Shore, IRHD and VLRH Hardness Testing System

Specification

Shore A :

• soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc…
• DIN EN ISO 868
• 4 mm

Shore A :

• soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc…
• DIN ISO 7619, DIN 53505, ASTM D 2240, NFT 51-174, BS903 Part. A 26
• 6 mm

Asker C :

• soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc…
• SRIS 0101, ABNT NBR 14455
• 6 mm

Shore A0 Shore E :

• soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc…
• DIN ISO 7619 ASTM D 2240
• 6 mm

M Shore A :

• soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc…
• Bareiss standard
• 0,5 mm

Shore D :

• hard rubber, hard DIN EN ISO 868 4 plastics, acrylic glass, polystyrene, rigid thermoplastics, Resopal, pressure rollers, Vinyl plates, cellulose-Acetate, etc…
• DIN EN ISO 868
• 4 mm

Shore D :

• hard rubber, hard DIN EN ISO 868 4 plastics, acrylic glass, polystyrene, rigid thermoplastics, Resopal, pressure rollers, Vinyl plates, cellulose-Acetate, etc…
• DIN ISO 7619, ASTM D 2240, NFT 51-174, BS903 Part. A 26
• 6 mm

Asker CS :

• see Shore D
• SRIS 0101
• 6 mm

M Shore D/C/D0 :

• see Shore D 0,5
• Bareiss standard
• 1,5 mm

M Shore D/C/D0 :

• see Shore D 0,2
• Bareiss standard
• 1,5 mm

Shore B :

• middle hard materials from rubber, typewriter roles, flat materials
• ASTM D 2240
• 6 mm

Shore C :

• plastics and middle hard rubber materials
• ASTM D 2240
• 6 mm

Shore D0 :

• plastics and middle hard rubber materials
• ASTM D 2240
• 6 mm

Shore 0 :

• soft elastic materials, pressure rolls, middle firm, textile fabrics, nylon, orlon, perlon, rayon
• ASTM D 2240
• 6 mm

Shore 00 :

• sponge- and foam rubber, cellular rubber, silicone
• ASTM D 2240
• 6 mm

Shore 000 :

• sponge- and foam rubber, cellular rubber, silicone
• ASTM D 2240
• 6 mm

Shore 000 S :

• see Shore 00 / 000
• ASTM D 2240
• 6 mm

Type AM/M :

• see Shore A
• DIN ISO 7619 ASTM D 2240
• 1,5 mm

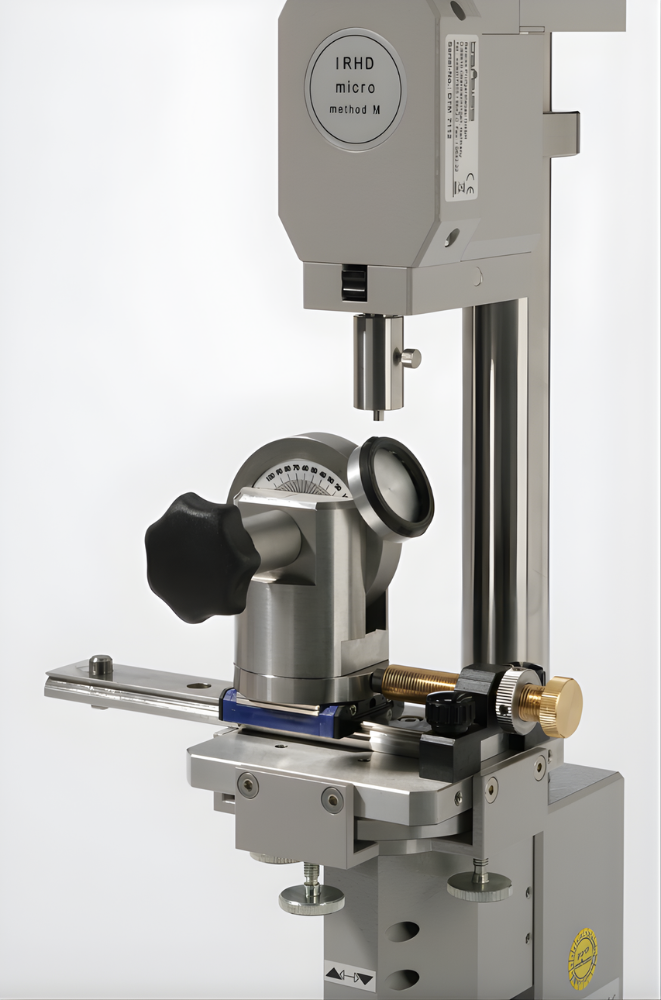

IRHD M :

• thin walled O-rings, moulded parts, standard plates
• DIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part. A 26
• 0,6 mm

IRHD H :

• see Shore D
• DIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part. A 26
• 6 mm

IRHD N :

• soft rubber, high elastic materials, plastic ductile materials
• DIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part. A 26
• 6 mm

IRHD L :

• sponge- and foam rubber, cellular rubber, silicone
• DIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part. A 26
• 10 mm

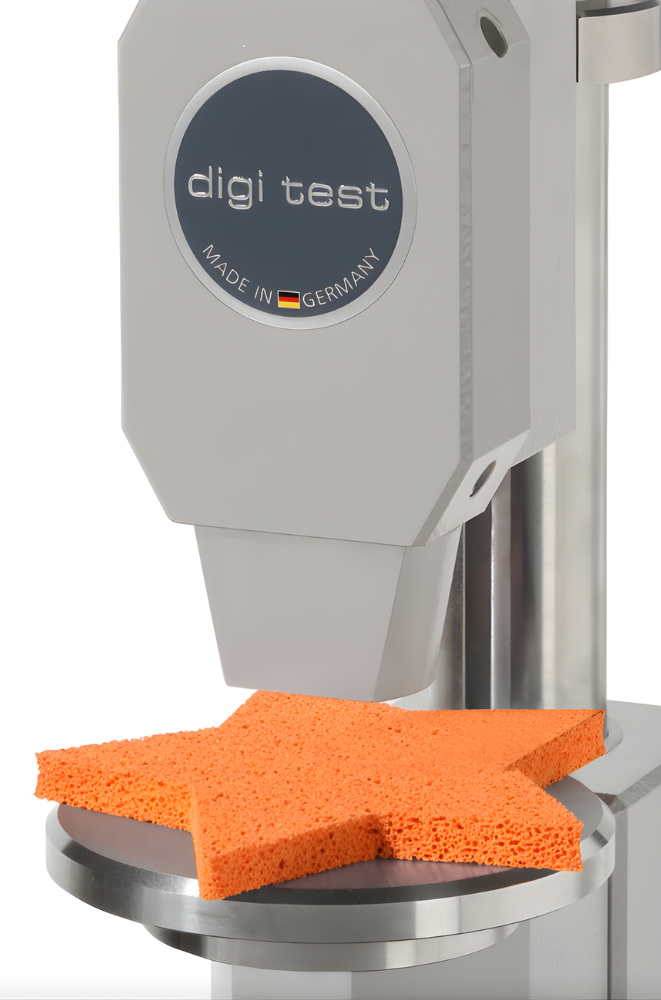

VLRH :

• sponge- and foam rubber, cellular rubber, silicone
• DIN ISO 27588
• 2 mm

Pusey & Jones :

• rubber- or rubberlike materials, rubber rollers for the paper industry
• ISO 7267-3, ASTM D 531
• 13 mm
