เครื่องทดสอบลวดเรืองแสง
| Specification Items | Specifications or Functions | Remarks |
|---|---|---|

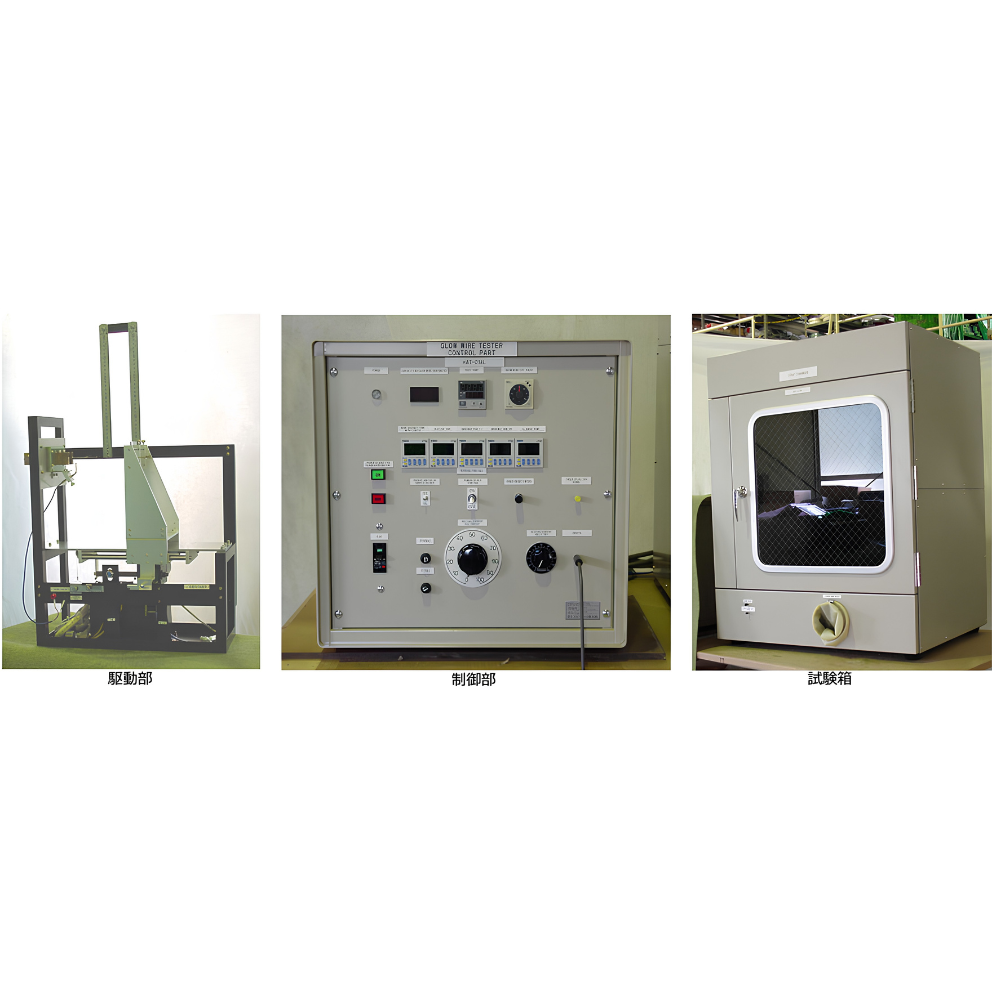

| Tester configuration | • Control unit • Test box • Drive unit |
It will be installed on a tabletop. |
| Dimensions and weight W, D, H [mm] |
[Control Unit] 530, 500, 520 / 50Kg[Test boxes] 800, 650, 1040 / 80kg |
Internal volume: 0.5m³ |
| Power supply | AC100V, 50/60Hz, 10A, single phase | Changeable |
| Chimney for exhaust duct connection | Outer diameter φ98 | Chamber ceiling |
| Standard accessories | • Wire: 2 pieces • Thermocouple: 2 pieces • Wooden boards: 5 pieces • Tissue paper: 1 bundle |
– |
| Testable temperature range [°C] | 500 – 960℃ | – |
| Temperature setting method | Manual setting | We also offer an automatic setup type. |
| Current measurement method and measurable range | Digital display, capable of measuring from 0 to 150A. | – |
| Wire temperature measurement hole diameter | Diameter of 1.1 mm | Thermocouple outer diameter: 1 mm |
| Measurable test samples | • Test specimen: within 150 x 120 mm • Includes component holder |
Custom jigs can be manufactured (optional) |
