เครื่องวัดความหนาแน่นแบบเกอร์ลีย์ สำหรับการประเมินความสามารถในการซึมผ่านของอากาศในกระดาษ, กระดาษแข็ง, และสิ่งทอ โดยผู้ใช้งานจะวัดระยะเวลาที่อากาศอัดในปริมาณที่กำหนดผ่านตัวอย่างทดสอบที่ถูกยึดหรือหนีบไว้ สามารถเลือกใช้งานได้ทั้งรุ่นแบบแมนนวลที่วัดเวลาโดยใช้นาฬิกาจับเวลา หรือรุ่นแบบอัตโนมัติที่วัดเวลาโดยใช้ตัวจับเวลาดิจิทัล

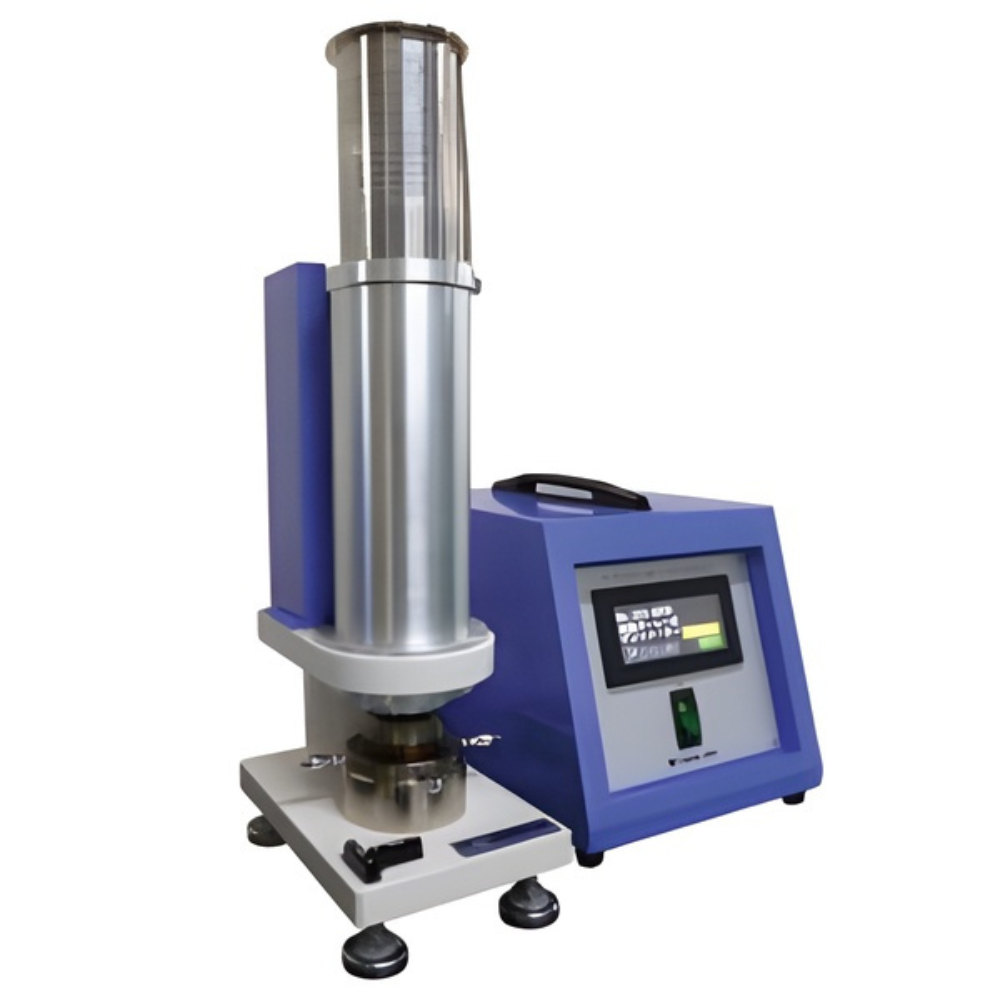

Model No.323-AUTO GURLEY TYPE DENSOMETER (AUTOMATIC)
Specimen : 50 × 50 mm
Clamp : φ28.6 ± 0.1 mm (Permeation Area 642 mm2)
Outer Cylinder : Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom
Inner Cylinder : Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g
Air Volume : 0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml)
Time Measuring : Automatic Max. 99999.9 sec
Detection: Micro Optical Senser
Accessories : Machine Oil
Option : Attachment (φ10 mm)
Power Source : AC 100 V, 1-Phase, 3 A, 50/60 Hz
Dimensions/ Weight (Approx.) : Tester Body:
W150 × D230 × H420* mm/ 20 kg
*H580 mm: When Inner Cylinder is set in the test position.
Control panel:
W250 × D450 × H280 mm/ 8 kg
