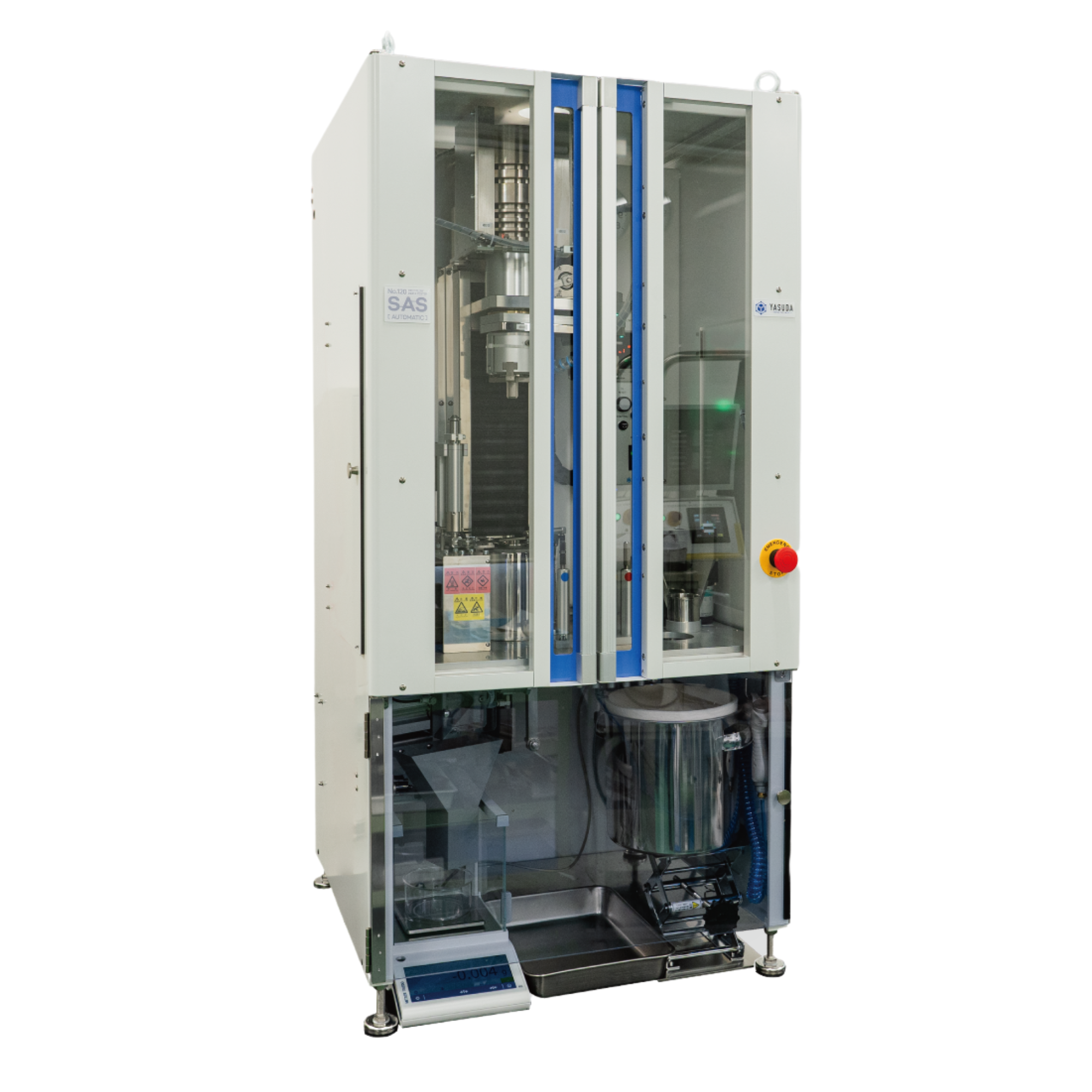

Melt Flow Index Tester (Automatic) | 120-SAS

Specification

Hangings : 1 or 3 Hangings (2 kinds)

Die : φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm

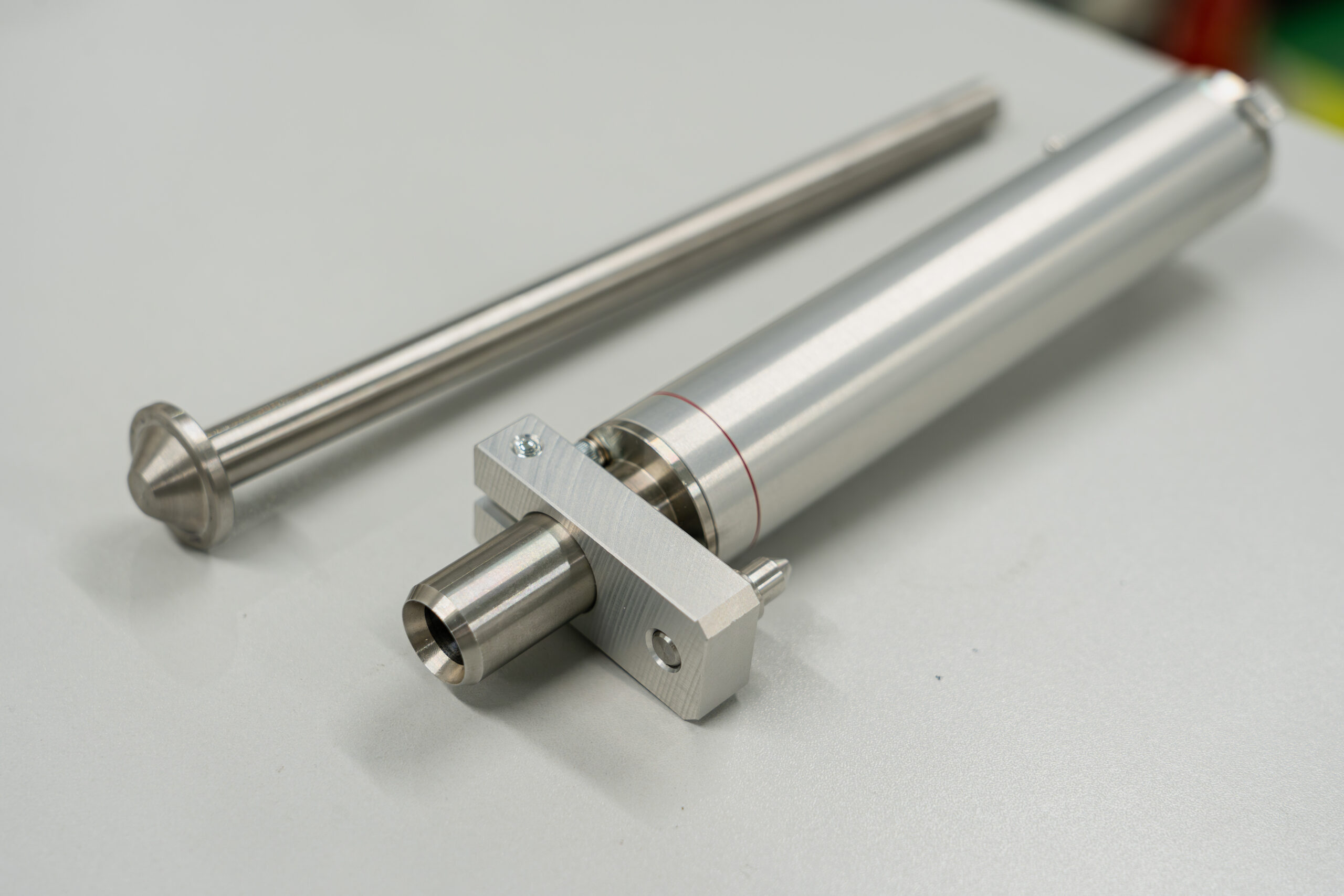

Piston : Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm

Cylinder : Inner φ9.550 ± 0.007 mm, L160 mm

Temperature Range : Max. 300 °C (Option: Max. 400 °C)

Initial Weight : 0.325 kgf

Additional Weight : 1.20 〜 21.60（※ Please refer below）

Test Method : Method A: Manual (Option: Automatic)
Method B: Automatic

Specimen Feeding : Automatic

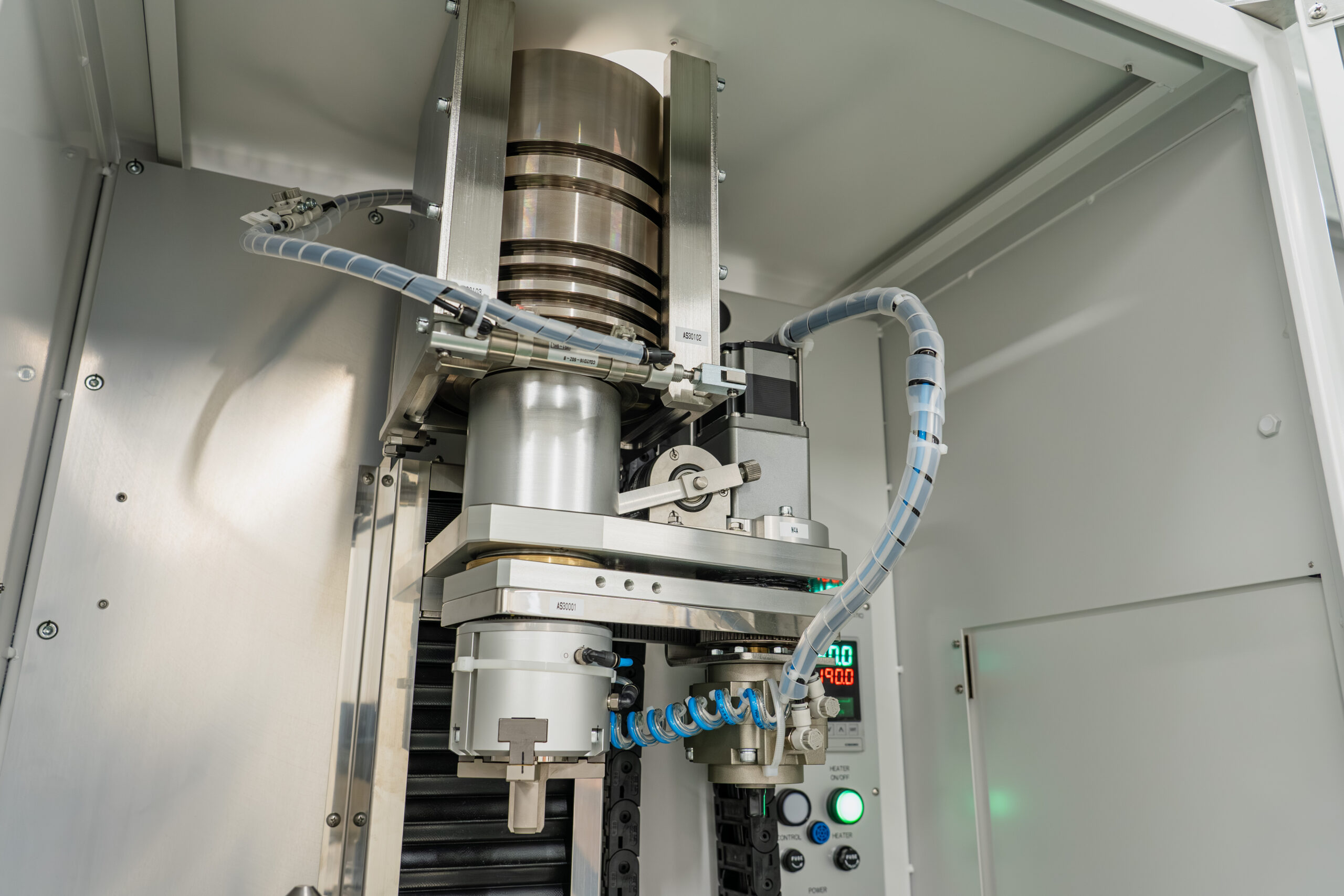

Weight Loading : Automatic

Weight Change : Manual (Option: Automatic)

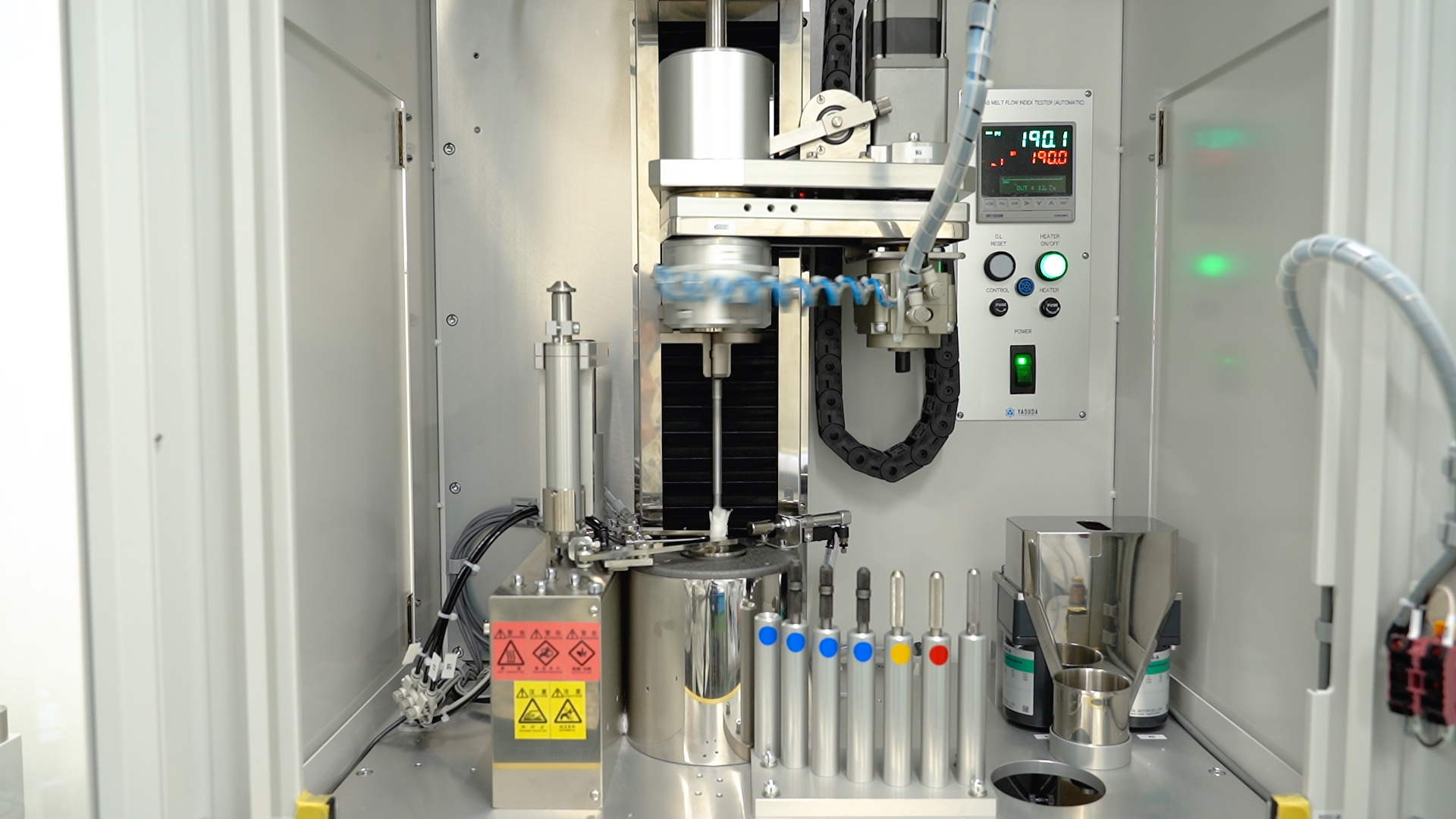

Cylinder Cleaning : Automatic (Solvent Cleaning can also be Automatic)

Die Cleaning : Automatic

Piston Cleaning : Manual (Option: Automatic)

Die Cleaning Rod Cleaning : Manual (Option: Automatic)

Cleaning Gauze Feeding : Manual

Data Processing : Method A: Manual (Option: Automatic)
Method B: Automatic

Method B Measuring : Rotary Encoder

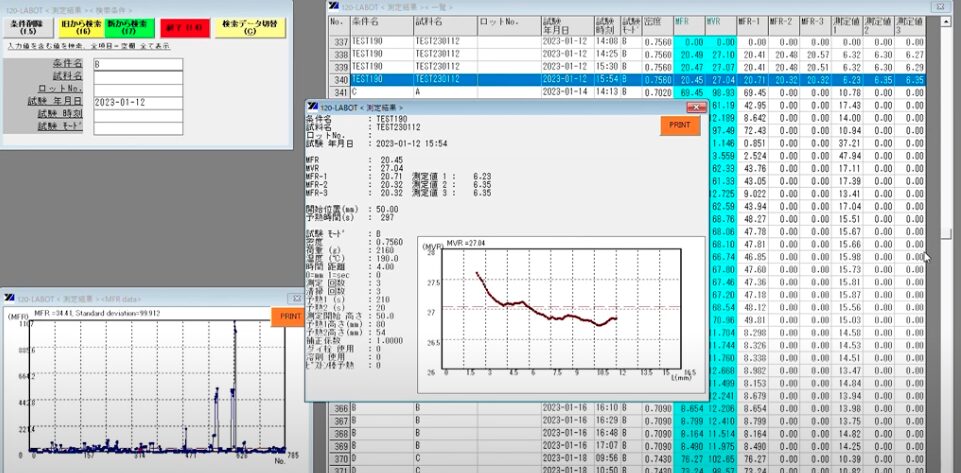

Software : Windows Compatible

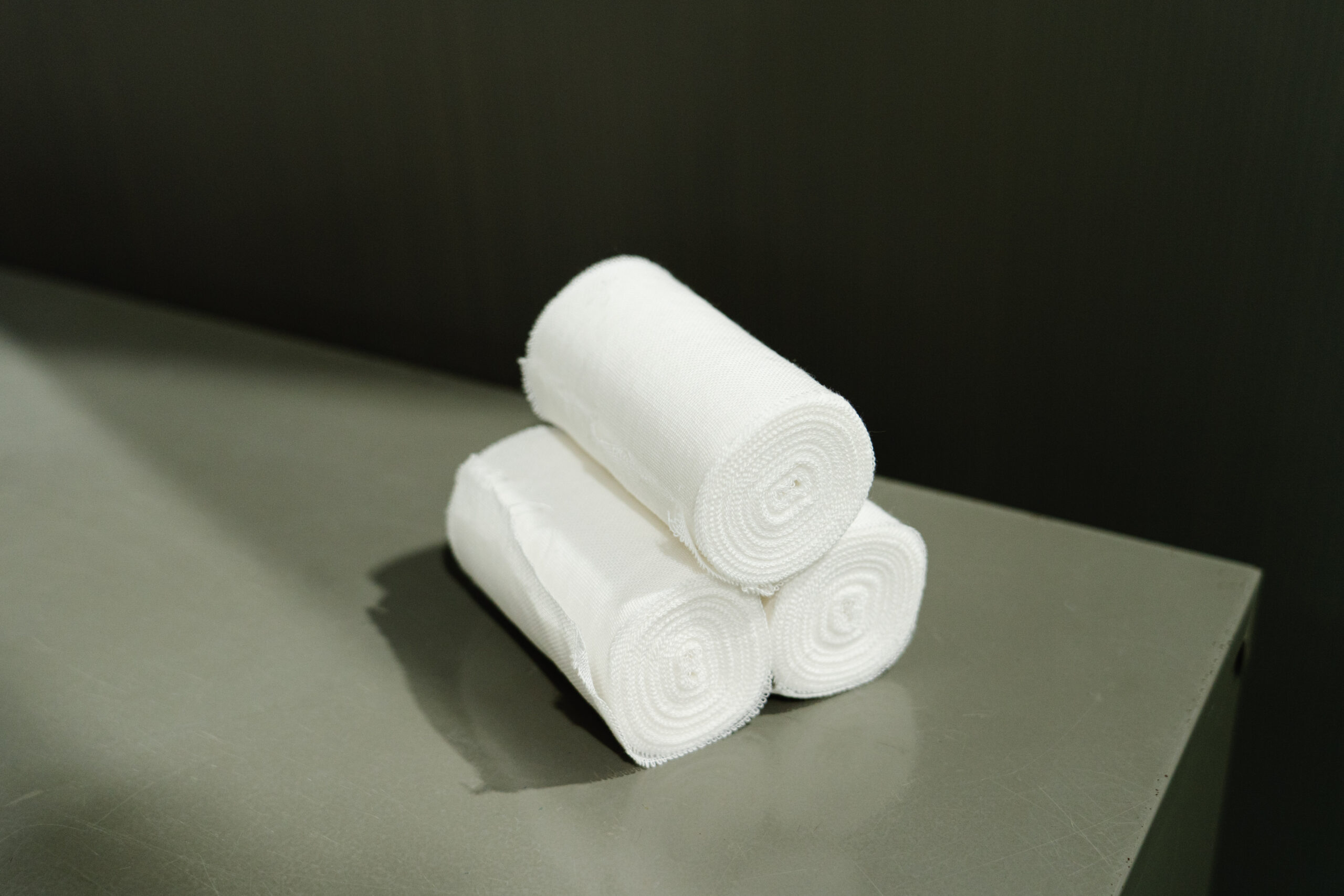

Accessories : Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun

Option : Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor (Standard for No.120-LABOT)
Additional Weight ( 1.20, 2.16, 3.80,  5.00, 10.00, 21.60 kgf.)

Power Source : AC 200 V, 1-Phase, 10 A, 50/60 Hz
AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type)

Air Source : 0.5 MPa or More

Dimensions/ Weight (Approx.) : 1 Hanging: W675× D645 × H1,370 mm/200 kg
3 Hangings: W675 × D725 × H1,370 mm/ 220 kg
