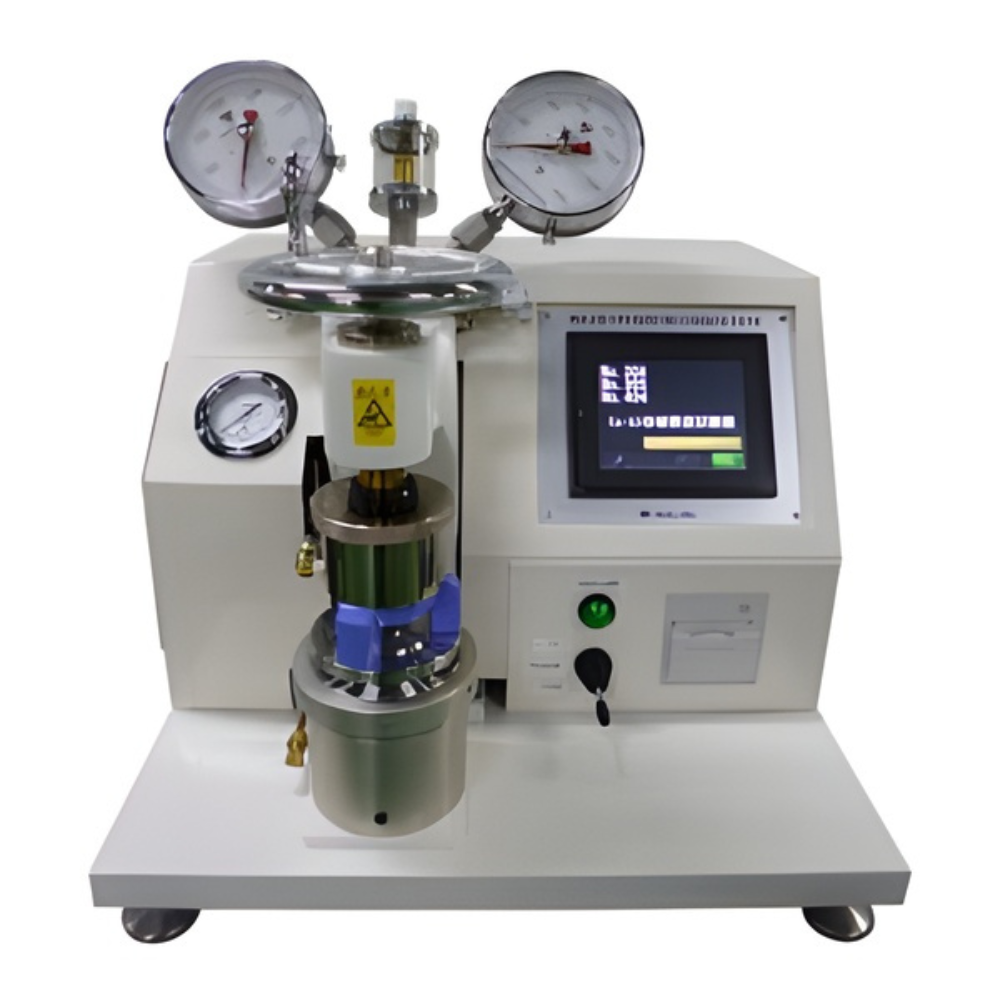

MULLEN HIGH-PRESSURE TYPE BURSTING STRENGTH TESTER | 304-TP

Specification

Test Sample : 100×100 mm or above

Clamping Plates : 60˚ V-grooves, opening (upper) ø31.5 ± 0.1mm, opening (lower) ø31.5 ± 0.1 mm

Loading Rate : 170 ± 15 ml/min

Accessories : Rubber diaphragms (10 pcs), bulge height gauge, clamping tools

Options : Analog pressure gauge, CSV file output

Analog Pressure Gauge : Select 2 from 2.0, 4.5, 7.0 MPa

Power Source : AC 100 V 1-phase 10 A 50/60 Hz

Dimensions and Weight (Approx.) : W560×D580×H570 mm, 104 kg
