252-UL-1581 ELECTRIC WIRE FLAMMABILITY TESTER
24 ตุลาคม 2567
ผู้ชม 14 ผู้ชม
- This tester is to evaluate the flammability resistance of electric wires by conducting a vertical flammability test.
- The operator is to fix the test specimen to the upper and lower Chuck and tilt the burner 20° to burn the test specimen for 15 seconds.
UL-1581、ASTM D5025、D5207
|
Specifications are subject to change without notice. |
|
|

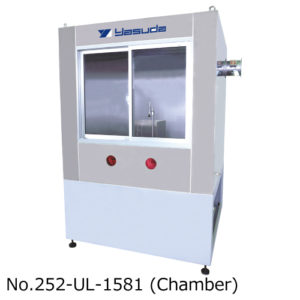

Chamber |
1.6 × 1.6 × 1.6 m (Volume Approx. 4 m3) |
|
Specimen |
L450 ± 10 mm |
|
Burner |
L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm |
|
Burner Base |
Inclination Angle 20° |
|

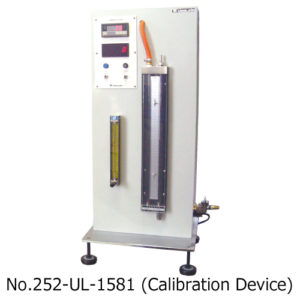

Burner Calibration Device |
Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min) |
|
Accessories |
Flame Gauge, Ring Stand, Gauge for Slug, Dry Cotton Pad |
|
Power Source |
Tester Body: AC 100 V, 1-Phase, 3 A, 50/60 Hz |
|
Heat Source |
Methane Gas (Purity: 98 % Over) |
|
Dimensions/ Weight (Approx.) |
W2,000 × D1,600 × H2,350 mm, 442 kg (Chamber) |
