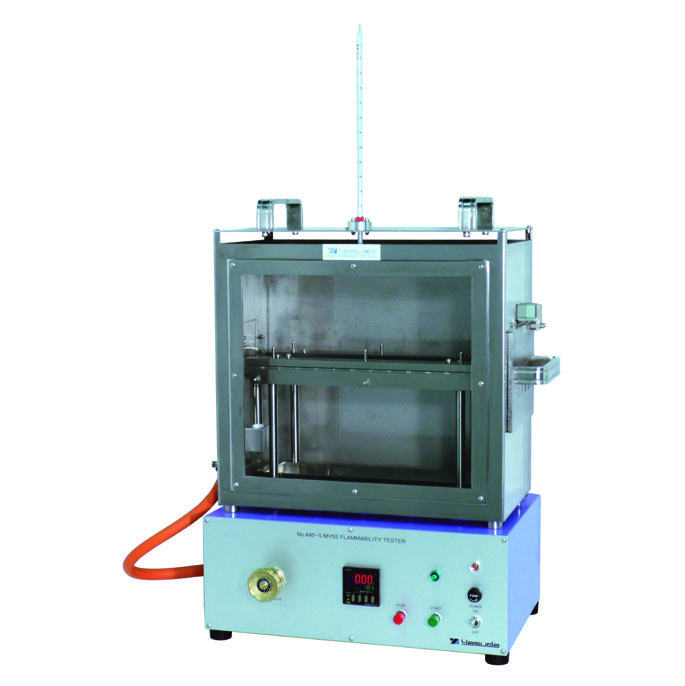

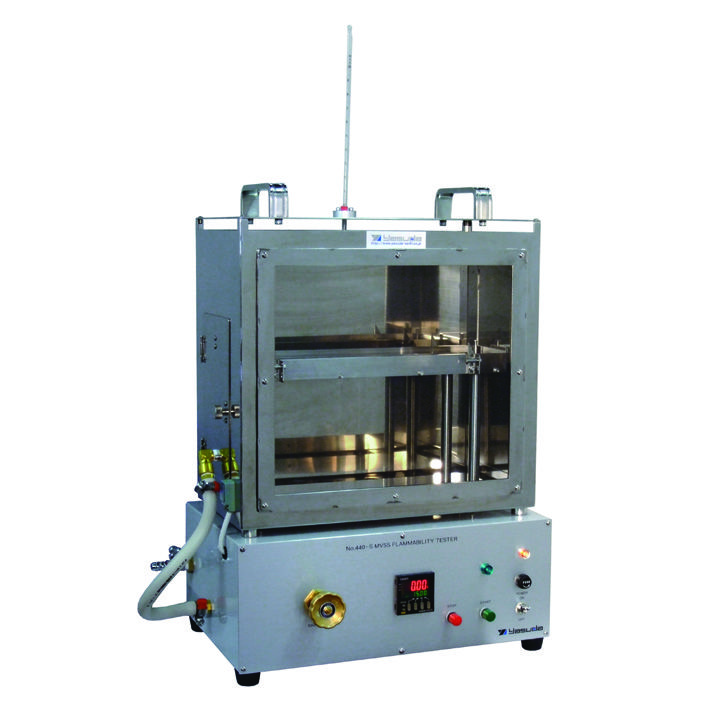

440-S MVSS FLAMMABILITY TESTER
31 ตุลาคม 2567
ผู้ชม 17 ผู้ชม
- This tester is used to evaluate the flammability of inner material for cars, tractors, and machines. The test specimen is set on a U-shaped specimen holder, and applied heat on the open end for 15 seconds. The operator is then to measure the flaming speed of the test specimen.
FMVSS-302, JIS-D1201, (JASO), ISO-3795, ASTM-D5132
|
Specifications are subject to change without notice. |
||||
|
Model |
No.440-S1 (FMVSS, ASTM) |
No.440-S2 (JIS, ISO, JASO) |
||
|
Standard |
FMVSS |
ASTM |
JIS / ISO |
JASO |
|
Specimen |
W102 mm, L356 mm, |
W100 mm, L300 mm or more, |
When W3 to 60 mm |
W100 mm, L356 mm |
|
Bunsen Burner |
Inner φ10 mm |
Inner φ9.5 ± 0.3 mm |
Inner φ9.5 ± 0.5 mm |
Inner φ10 mm |
|
Heat Source |
Natural Gas |
Methane Gas or Natural Gas |
Natural Gas |
Natural Gas |
|
Specimen Holder |
U-shape with Groove (Pitch 25 mm), Marked Line |
U-shape with Groove (Pitch 25 mm), Pin Tray |
||
|
Heat-Resisting Wire |
φ0.25 mm |
|||
|
Accessories |
Specimen Attachment Set, Gas Lighter, Thermometer, LPG Gas Hose, Hose Band, Flame Gauge, Heat-Resisting Wire,
|
|||
|
Option |
Timer (Flaming Time Control), Spirit Level, Heat-Resisting Wire(Spare) |
|||
|
Power Source |
AC 100 V, 1-Phase, 5 A, 50/60 Hz (with Timer) |
|||
|
Dimensions/ Weight (Approx.) |
W480 × D250 × H580 mm/ 18 kg |
W480 × D250 × H580 mm/ 20 kg |
||
