473 ICI TYPE MACE SNAG TESTER
หมวดหมู่สินค้า: Plastic testing and processing
31 ตุลาคม 2567
ผู้ชม 16 ผู้ชม
- This tester is used to conduct snag tests on textile and fabric according to the ICI type mace test method. Applying the spike ball (mace with needles) onto the test specimen which is attached to the rotating cylinder, the operator is to compare the degree of snag among the test specimens and by using the standard snag judgement reference after the test specimen has been rotated 100 times.
JIS-L1058, ASTM-D3939
|
Specifications are subject to change without notice. |
|
|
Hangings |
2 Hangings (Individual Motioning Type) |
|
Specimen |
200 × 330 mm |
|
Mace |
φ31.8 mm, Mass 160 g (Including Needles) |
|
Needle |
11 pcs, Top R0.127 mm, L9.5 mm |
|
Rotating Drum |
Outer Diameter φ82 mm (Rubber T3 mm), W210 mm |
|
Drum Rotation Speed |
60 rpm |
|
Felt |
T3.2 mm, W165 mm |
|
Guide Rod |
Outer Diameter φ10 mm, W122 mm |
|
Counter |
6 Digits Preset Counter |
|
Drum-Guide Rod Distance |
60 mm |
|
Mace-Guide Rod Distance |
46 mm |
|
Accessories |
Rubber Ring: 4 pcs, Setting Gauge: 1 pc, |
|
Option |

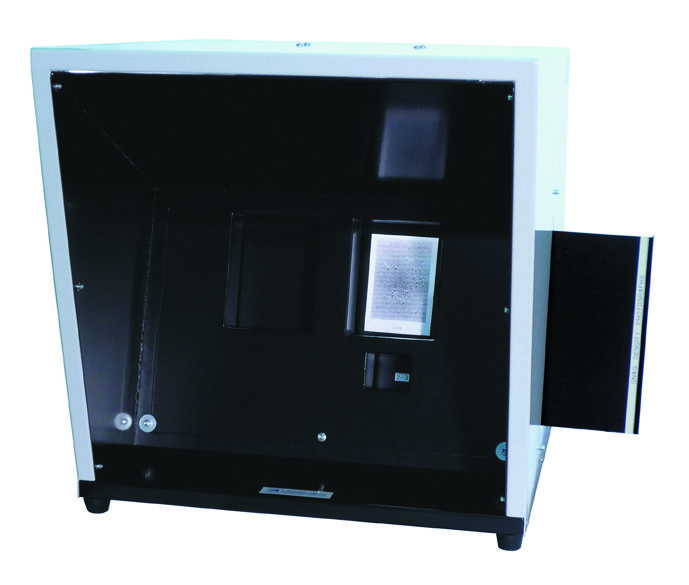

Safety Cover, Cabinet for Determination |
|
Power Source |
AC 100 V, 1-Phase, 5 A, 50/60 Hz |
|
Dimensions/ Weight |
Tester Body: W500 × D490 × H430 mm/ 40 kg |
