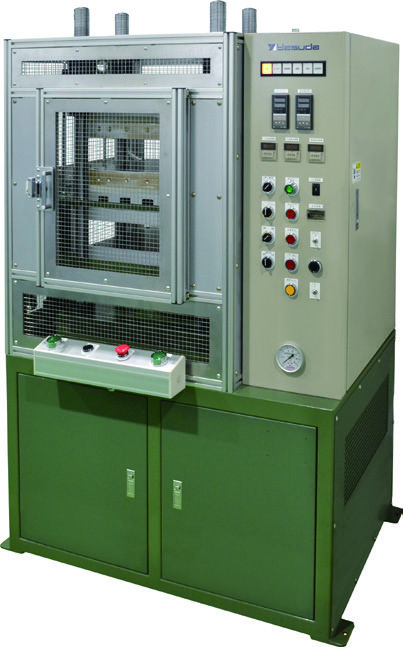

196 ELECTRIC HEATING SYSTEM TEST PRESS
หมวดหมู่สินค้า: Rubber testing and processing
09 กันยายน 2567
ผู้ชม 5 ผู้ชม
- This machine is for compressing plastic and rubber. The heat platen is heated electronically and pressure is applied with a manual oil pressure pump. The upper platen can be adjusted and fixed to the optimal position with a limit nut to provide optimal operability.
-
|
Platen Size |
355 × 305 mm |
|
Platen Opening |
Max. 550 mm |
|
Ram Diameter |
φ150 mm |
|
Ram Stroke |
Max. 200 mm |
|
Maximum Pressure |
Max. 20.6 MPa (210 kgf/cm2) |
|
Maximum Force |
Max. 37 ton |
|
Temperature Range |
Max. 250 ˚C (Option: Max. 400 ˚C) |
|
Option |
Hydraulic Pump System, 2 Stages, Water Cooling Platen, |
|
Power Source |
AC 200 V, 3-Phase, 40 to 50 A, 50/60 Hz |
|
Dimensions/ Weight (Approx.) |
W630 × D470 × H1,550 mm/ 600 kg |
