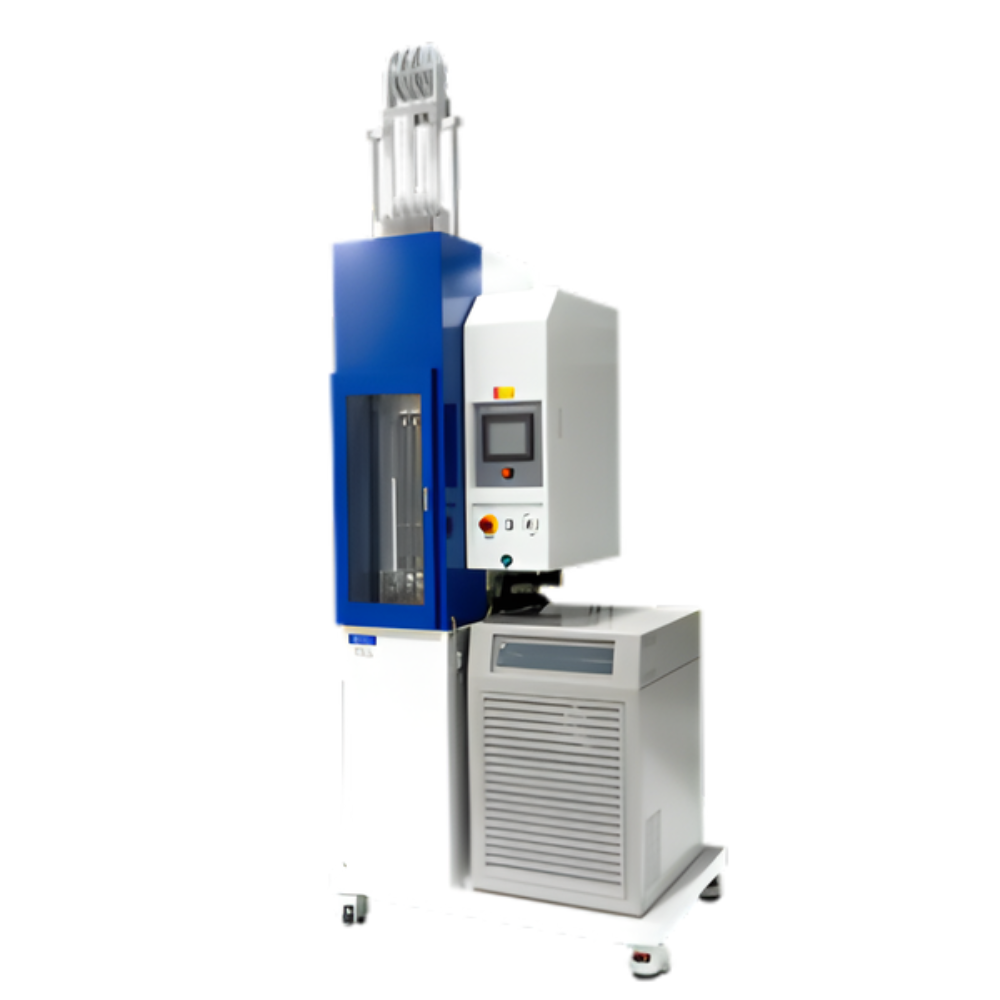

เครื่องทดสอบการคืนตัวของยาง และเทอโมพลาสติก สำหรับวัดการคืนตัวของความยืดหยุ่นที่อุณหภูมิต่ำของยางวัลคาไนซ์และยางเทอร์โมพลาสติก หลังจากยืดตัวอย่างทดสอบภายใต้อุณหภูมิต่ำแล้ว เครื่องทดสอบจะวัดอุณหภูมิที่ตัวอย่างทดสอบคืนตัวความยืดหยุ่นในขณะที่อุณหภูมิยังคงสูงขึ้น ผลทดสอบ TR5, TR10, TR20
Hangings :4 or 6 Hangings (2 kinds)
Specimen : I-shape, Chuck Area: 6.5 × 6.5 mm
Parallel Area: W2.0 ± 0.2 mm
L100.0 ± 0.2 mm or 50.0 ± 0.2 mm,
T2.0 ± 0.2 mm
Chuck Distance : 50 mm or 100 mm
Displacement Measurement : Optical Scale Sensor, Accuracy of ± 0.1 mm, Scale 0.1 mm, Stroke Max. 200 mm
*The Displacement Measuring Stroke is to be decided through discussion.
Temperature Range : -70 to 30 °C (Refrigerator & Refrigeration Medium) (Option: Combined with Liquid Nitrogen -100 °C)
Refrigeration Medium Amount : 27 L
Heat-Up Speed : 1 °C/min
Software : Windows Compatible
Accessories : Specimen Setting Gauge, Specimen Cutter (100 mm, 50 mm): 1 pc each
Option : Safety Cover
Power Source : AC 200 V, 3-Phase, 30 A, 50/60 Hz
Dimensions/ Weight (Approx.) : 4 Hangings: W1,110 × D830 × H2,020 mm/ 350 kg
6 Hangings: W1,200 × D1,000 × H2,020 mm/ 373 kg
*Dimension when the Specification of the Stroke is Max.200 mm
*Height when the Rack is Raised:H2,370 mm
