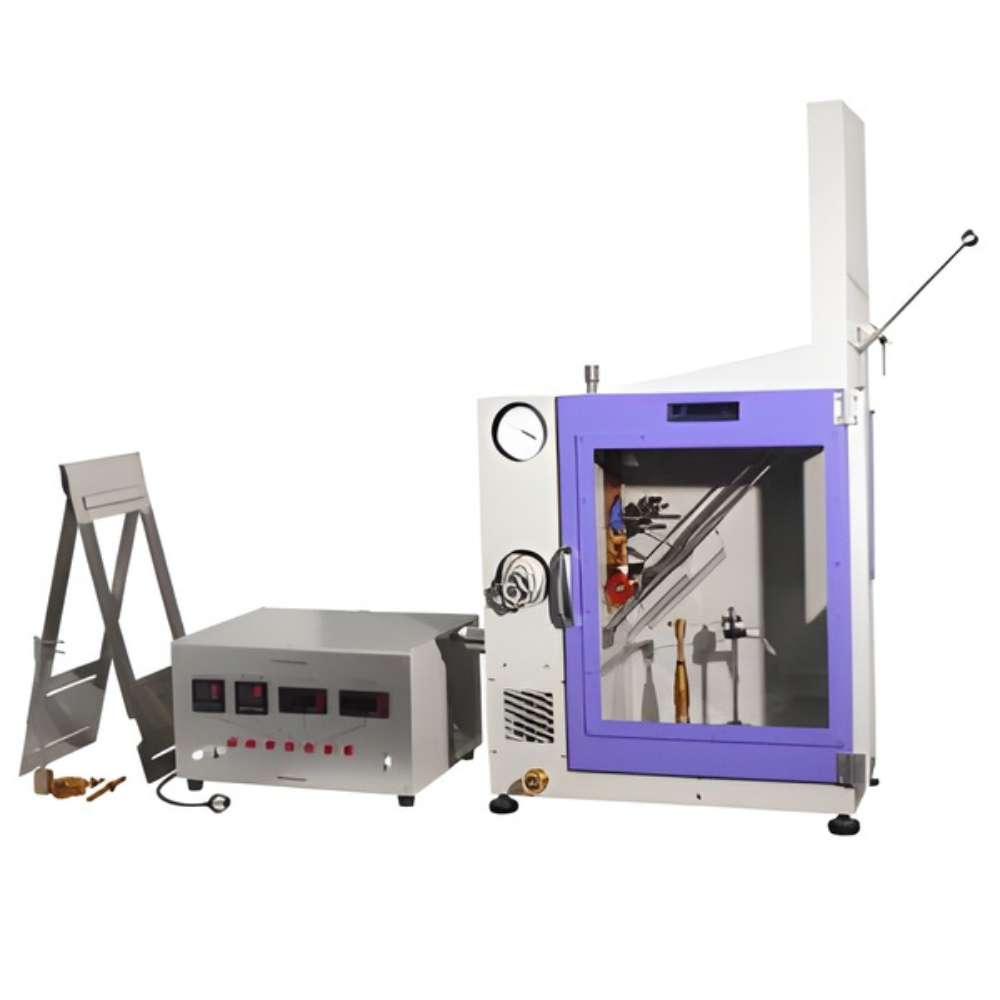

45˚ FLAMMABILITY TESTER FOR TEXTILE | 455

Specification

Test Method : Standard Spec , B Method Spec (Surface Flaming Test)

Specimen

Standard Spec : A-1 and A-2 Method: 350 × 250 mm
D Method: W100 mm, Mass 1 g
Attaching Angle: 45˚

B Method Spec (Surface Flaming Test) : 220 × 400 mm

Burner

Standard Spec : A-1 and D Method:
Micro Burner, Flame Height 45 mm
A-2 Method:
Meker Burner, Flame Height 65 mm

B Method Spec (Surface Flaming Test) : Air Mix Burner: Flame Height 24 mm
*Pressure of 3.92 kPa/hr

Timer

Standard Spec :  –

B Method Spec (Surface Flaming Test) : Heating Timer: Max. 999.9 sec
Flaming: Max. 999.9 sec
After-flame Timer: Max. 99999.9 sec
After-glow Timer: Max. 99999.9 sec

Igniter

Standard Spec : Automatic Ignition (Plug Method)

B Method Spec (Surface Flaming Test) : Automatic Ignition (Plug Method)

Accessories

Standard Spec : Specimen Holder (A-1 and A-2 Method),
Specimen Holding Coil (D Method),
Flame Height Measuring Stand,
Remote Control Button

B Method Spec (Surface Flaming Test) : Pearlite Plate, Specimen Holder

Power Source

Standard Spec : AC 100 V, 1-Phase, 3 A, 50/60 Hz

B Method Spec (Surface Flaming Test) : AC 100 V, 1-Phase, 3 A, 50/60 Hz

Heat Source

Standard Spec : Liquid Propane Gas Type 2 No.4

B Method Spec (Surface Flaming Test) : Liquid Propane Gas Type 2 No.4

Dimensions/ Weight (Approx.)

Standard Spec : Main Body: W420 × D330 × H940 mm/ 22 kg

B Method Spec (Surface Flaming Test) : Main Body: W560 × D330 × H940 mm/ 25 kg

Control Box: W370 × D300 × H220 mm/ 9 kg
