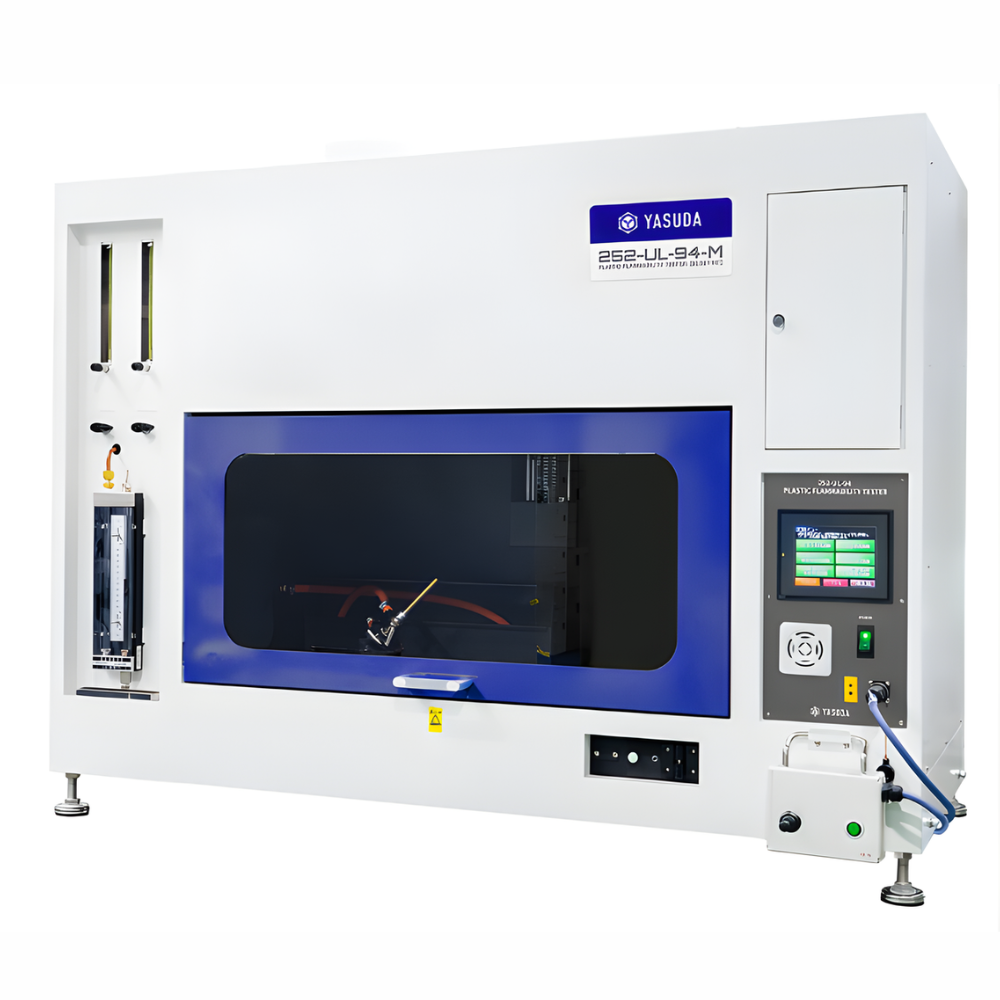

เครื่องทดสอบความทนทานต่อการลุกลามไฟของวัสดุอัตโนมัติ No.252-UL-94 | YASUDA SEIKI

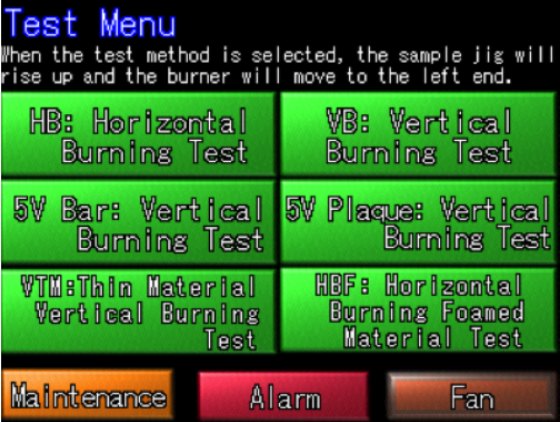

flammability tester for plastics evaluates flame spread rates and heat resistance in accordance with UL 94 and ISO 1210 standards. Equipped with a touchscreen interface and a jog dial (or joystick), the system allows operators to manage both the positioning of the burner—including distance adjustments—and the observation of the specimen’s burning behavior. The device features automated timing control and provides on-screen testing guidance, which helps minimize human error; once a test is complete, data can be processed directly via the touchscreen.



Key Feature

  • Accurate testing in accordance with international standards: Supports UL-94 (HB, V) standards, as well as JIS K6911, ASTM D635, and ISO 1210, ensuring internationally recognized certification results.

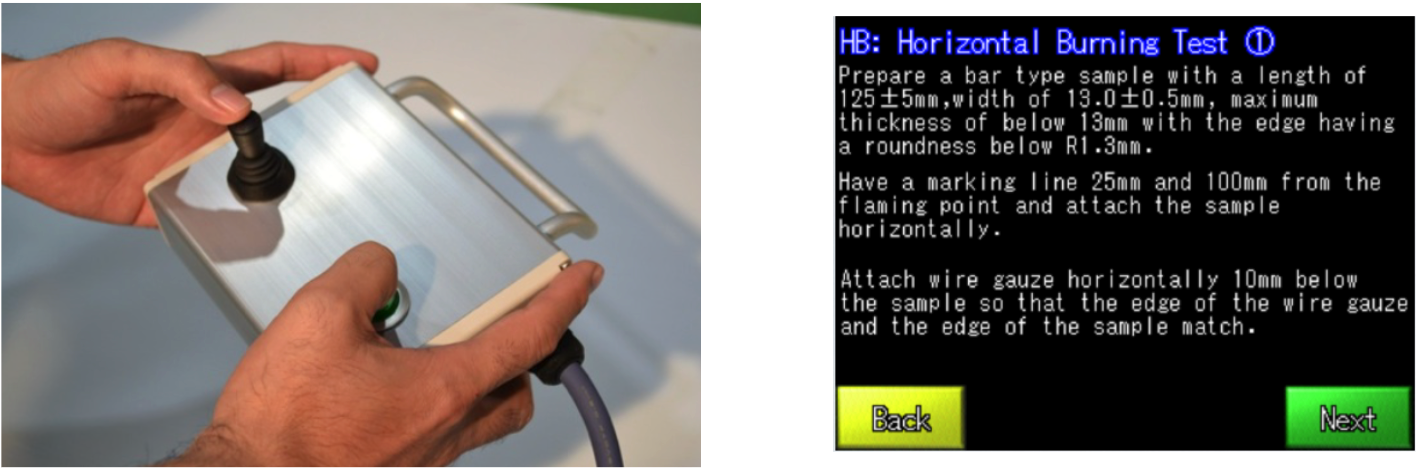

  • Work with ease without having to look away from your specimen: control the burner position via a Jog Dial or joystick, while the voice guidance system allows you to focus precisely on the burning behavior.

  • Safe and clean: Equipped with a large, built-in stainless steel fume hood to prevent chemicals and combustion-generated fumes from spreading into the laboratory.

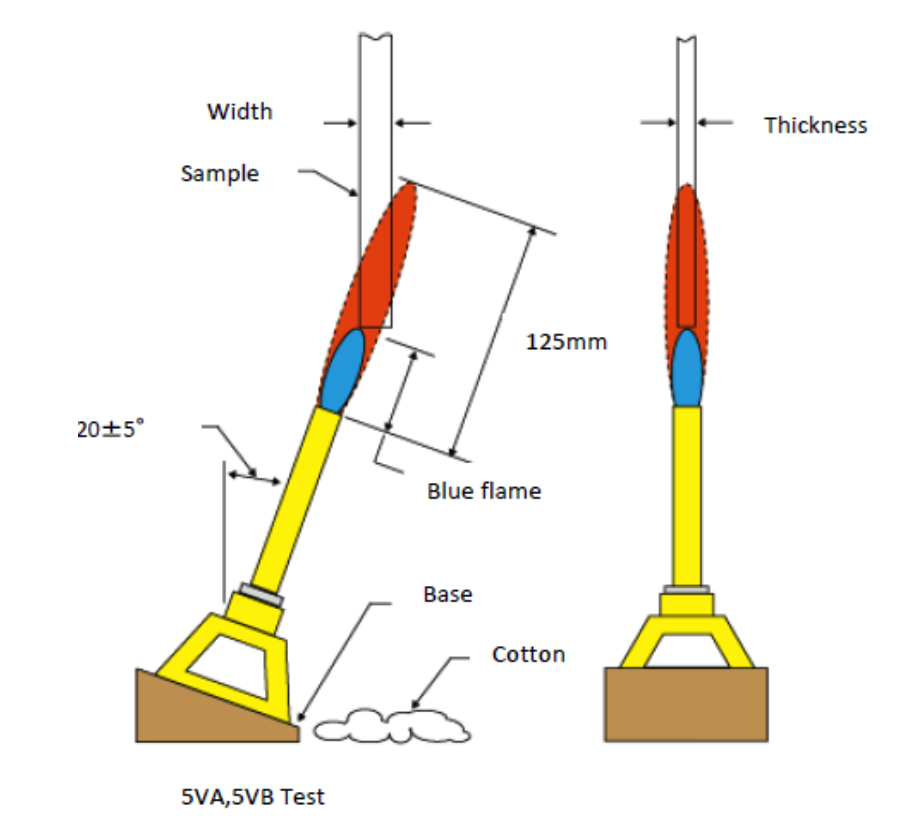

  • Enhanced versatility: Additional accessories can be installed to support further test configurations—such as 5V, VTM, HBF, and HF—on demand.

Reference Standards

UL-94、JIS K6911、ASTM D635、D3801、D4804、D5025、D5207、ISO 1210



Specification

Specification Model No.252-UL-94 (MANUAL) Model No.252-UL-94 (ELECTRIC)
Fume Hood Approx. 1000×560×900 mm (inside volume approx. 0.5 m³)
Exhaust outer diameter φ160 mm
Test Method HB (for self-supporting samples), V
Option: HB (for non-self-supporting samples), 5V, VTM, HBF, HF
Burner Tube length 100 ± 10 mm, inner diameter ø9.5 ± 0.3 mm
Burner Stand Manually controlled by handwheel for left/right movement
Burner angle: 0°, 20°, 45° (manually adjusted)
Motor controlled by joystick for left/right movement
Burner angle: 0°, 20°, 45° (manually adjusted)

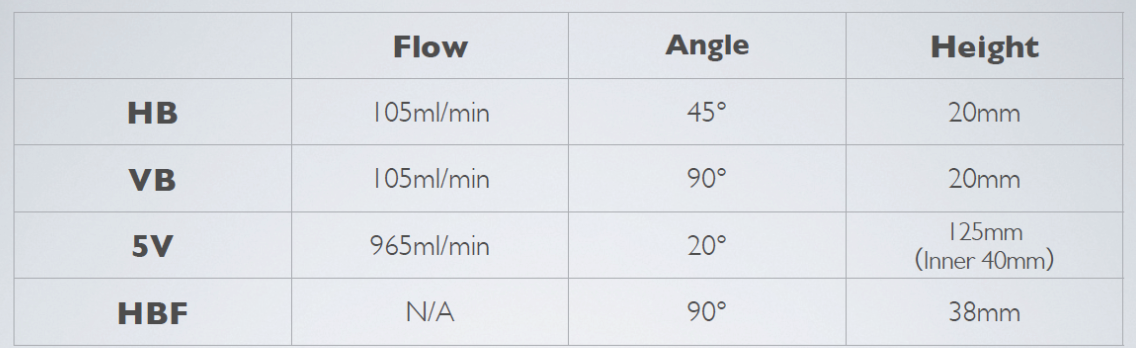

Flowmeter Max. 150 ml/min (graduation 2 ml/min),
Max. 1000 ml/min (Option, graduation 10 ml/min)
Max. 150 ml/min (graduation 2 ml/min),
Max. 1000 ml/min (graduation 10 ml/min)
Manometer Max. 2.0 kPa (graduation 0.01 kPa)
Accessories Heat resistant gloves, flame height gauge
Burner Calibration Device Optional Accessory Standard Accessory (Built-in, touchscreen operated)
Burner Calibration Accessories Timer (displayed on the touchscreen), temperature indicator, thermocouple and slug, slug positioning gauge
Power Source AC 100 V 1-phase 3 A 50/60 Hz AC 100 V 1-phase 10 A 50/60 Hz
Heat Source Methane gas (min. 98% pure) *Not included
Dimensions and Weight (Approx.) Main unit: W1,400×D700×H1,220 mm, 100 kg

Calibration device (Option):
W300×D350×H300 mm, 7 kg

W1,400×D700×H1,220 mm, 220 kg

* Specifications are subject to change without notice.

FAQ Section

Q1: What types of UL-94 standard tests can be performed using the No.252-UL-94 instrument?

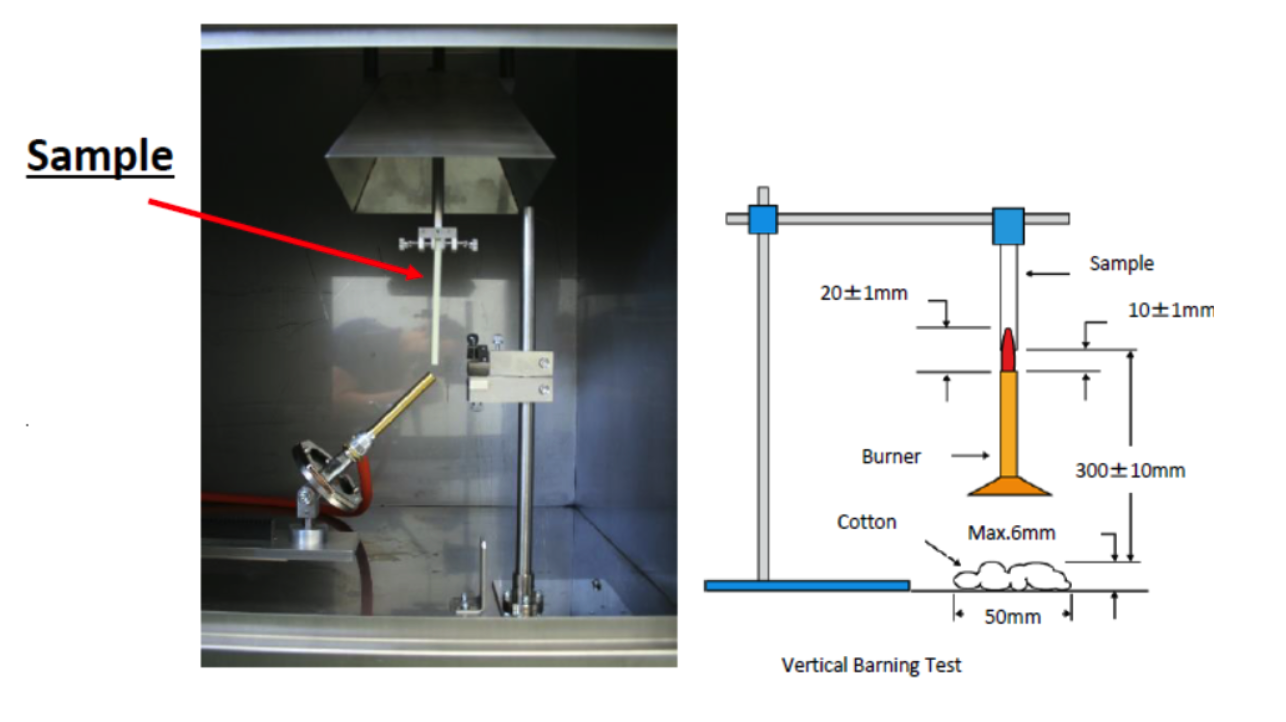

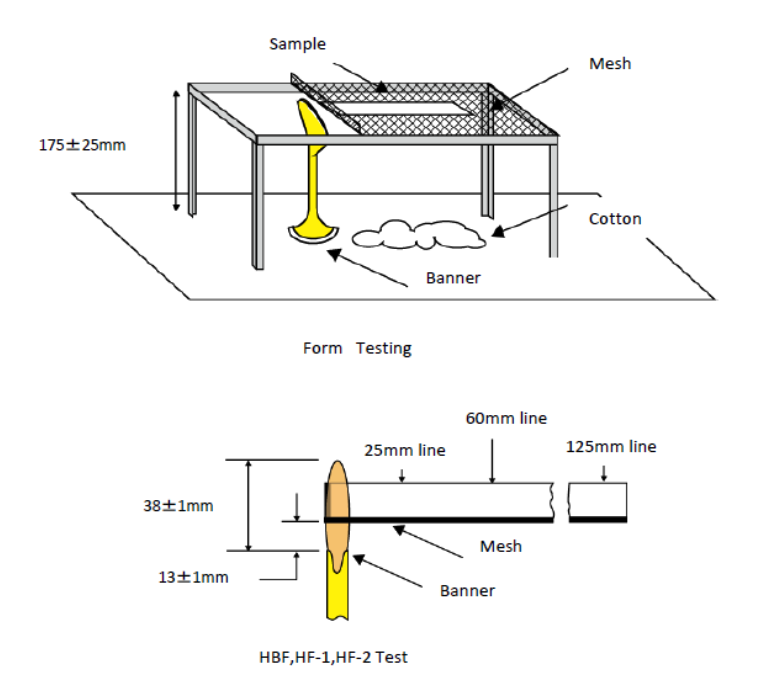

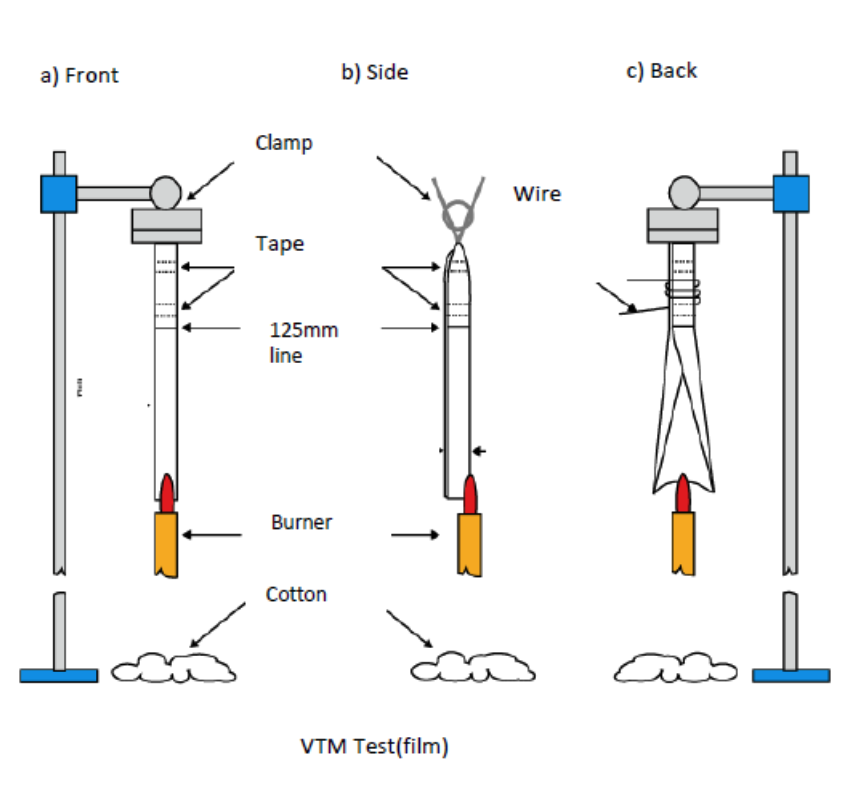

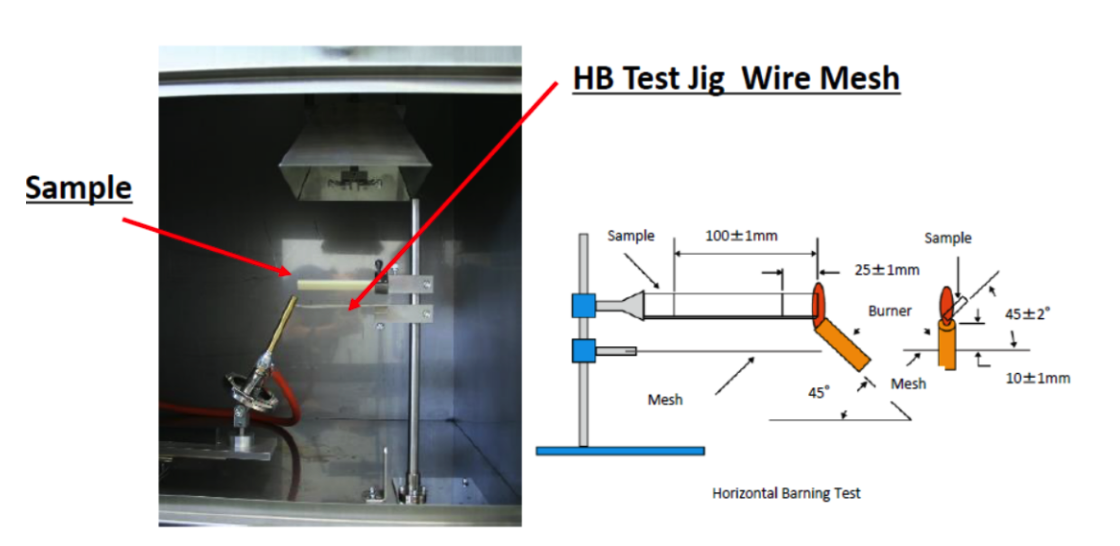

A: The standard unit supports Vertical Flaming Tests (V) and Horizontal Flaming Tests (HB) for general plastic specimens. Additionally, optional jigs can be installed to perform 5V, VTM, HBF, and HF tests, covering the full range of requirements for thin plastics or foam materials.

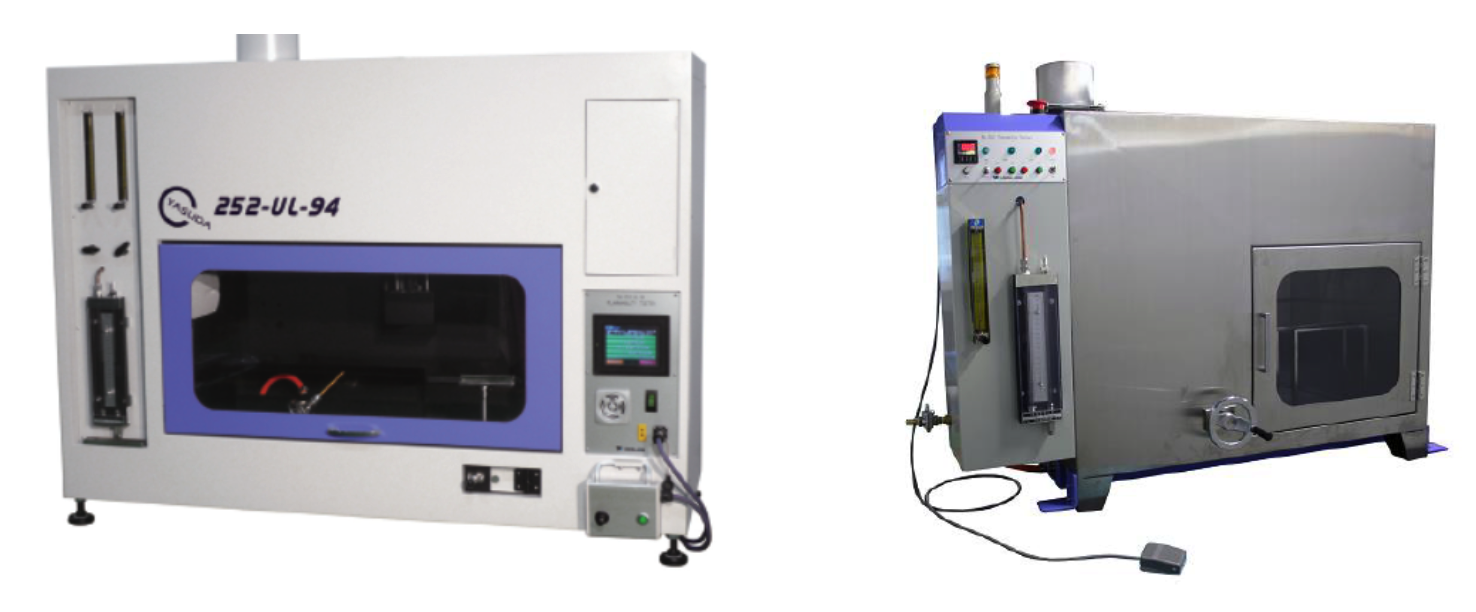

Q: What are the differences between the Manual and Electric versions of the No.252-UL-94?
A: The manual model features a handwheel for adjusting the position of the burner base (left-right movement), while the electric model utilizes a joystick to control movement via an electric motor. The electric version also includes a built-in burner calibration system—operated and monitored through a touchscreen interface—which enhances both convenience and precision during use.

Q: Why are the Voice Guidance and Jog Dial systems important for flammability testing?
A: During testing, the operator must keep their eyes focused on the plastic specimen at all times to observe the flame spread. The Jog Dial allows for parameter adjustments without the need to look down at the display, while the Voice Guidance** system provides audible instructions for each step of the procedure—enabling the operator to conduct tests accurately and safely, without ever having to take their eyes off the specimen.
