Automatic Hydraulic Compression Testing Machine

Specification

Automatic Hydraulic Compression Testing Machine, Various Use

ACA-F1 Serie

• ACA-20S-F1 (200kN)
• ACA-50S-F1 (500kN)
• ACA-100A-F1 (1000kN)

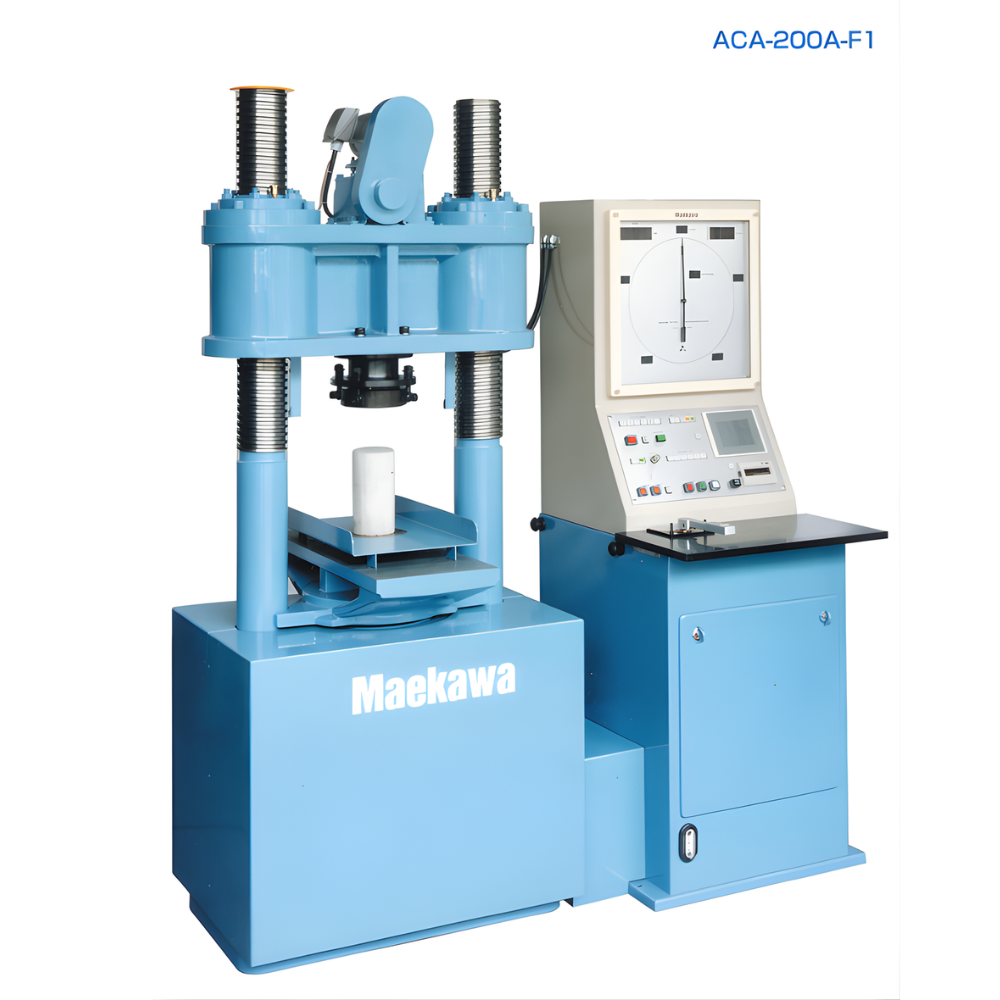

• ACA-200A-F1 (2000kN)
• ACA-300A-F1 (3000kN)
• ACA-500A-F1 (5000kN)

Specifications Table:

• Capacity (kN): Ranges from 200kN to 5000kN depending on the model.
• Load Steps (kN): Various load steps are available for each model, e.g., ACA-20S-F1 offers 200, 100, 50, 20, 10, <5kN.
• Stroke (mm): Models have stroke ranges from 0150mm.
• Speed (mm/min): Speed varies by model, e.g., ACA-20S-F1 has a speed of 80mm/min.
• Dimensions (mm): Dimensions differ for each model, e.g., ACA-200A-F1 is 2105x840x750mm.
• Weight (kg): Weight ranges from 1300kg to 6800kg depending on the model.

Control Features:

• Digital display for test force and stress (kN, N/mm²).
• Automatic mode selection switch.
• Hydraulic control lever for manual operation.
• Large LCD panel with Japanese color display.
• Peak value/tracking value switch.
• Crosshead elevation switch.
• Printer and buzzer options.

Control Modes:

• Stress control (multiple stages).
• Rapid unloading upon fracture detection.
• Test force hold and stroke tracking.
