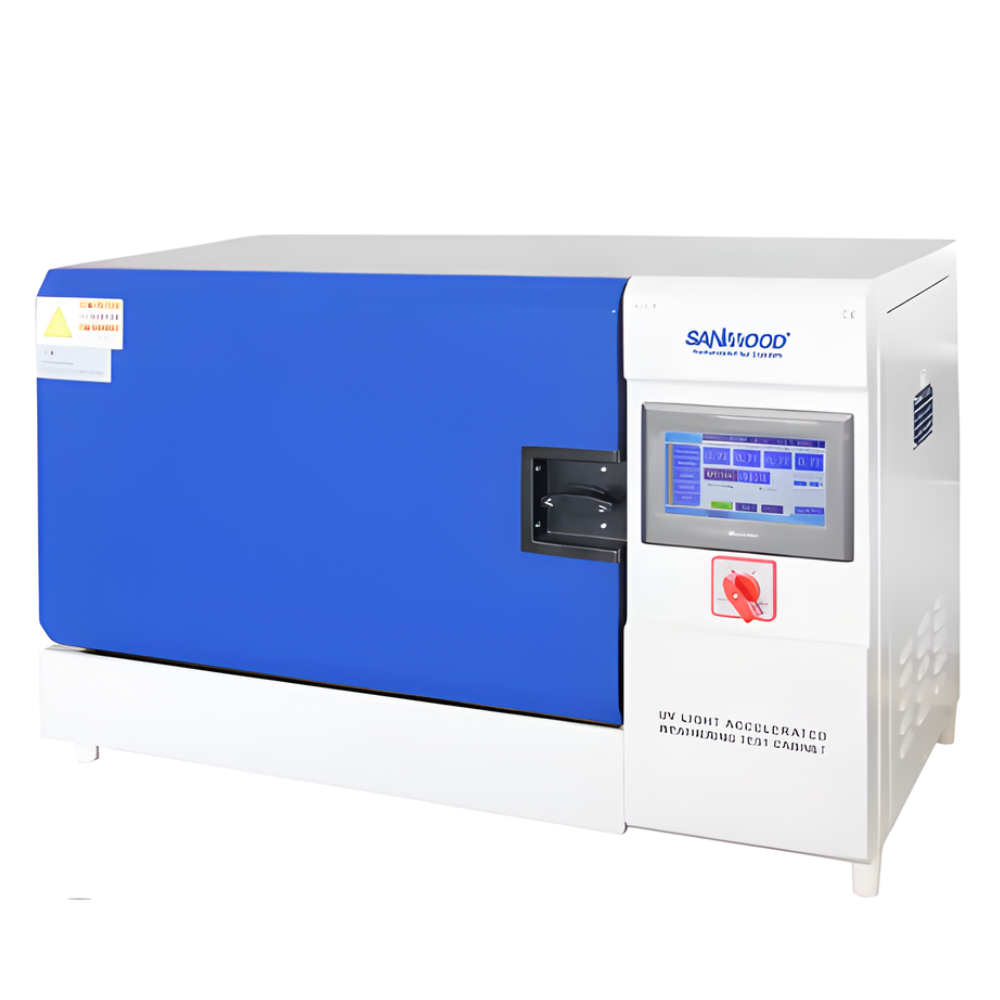

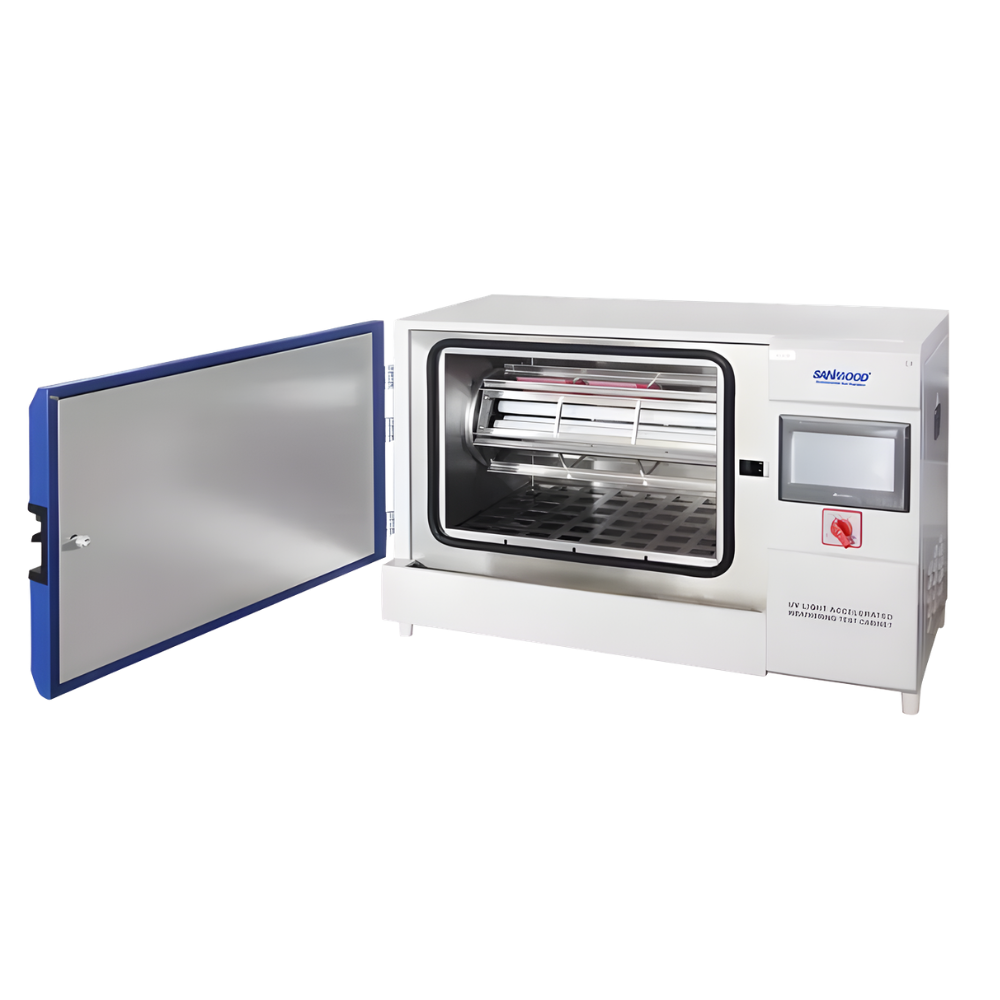

Bench-top UV test chamber

Specification

Bench-top UV test chamber Features:

• Touch screen and user-friendly operation interface allow handlers set the test parameters and monitor all the test process easily.

• Equipped with professional UV lamps who has high irradiance energy: 0.90W/m² (New lamp)

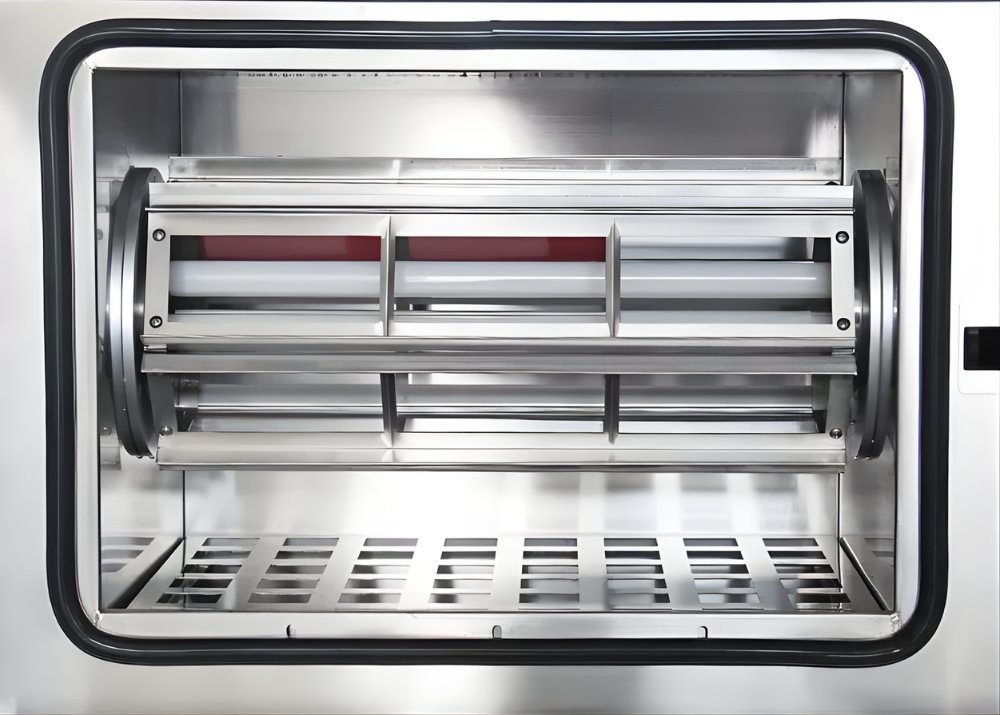

• Full stainless steel inner working room with sandwich design, never getting rusty and leakage. Also prevent water vapour coming from working room from entering electrical box and

• damaging electron components.

• Built-in water level switch, it will alarm and stop running automatically when under low water level.

Bench-top UV test chamber Main Technical Parameters

• Total power: 1.2 KW

• Power voltage: 220±22V/50±0.5Hz

• Setable range of test time: 1h～9,999h

• Setable range of spray time: 1min-9,999min

• Setable range of spray interval time: 1min-9,999min

• Rated life of lamp: 1,000h

• Wave length of lamps: 340 nm (UVA Lamps) or 313 nm (UVB Lamps)

• Lamp power: 3 pcs; each lamp is 20 W

• Spray water: ≥2L/min

• Capacity for test panels: 18 pcs standard size panels

• Specification of sample: 150mm×70mm

• Cabinet Size: 930×460×630mm (L×D×H)

• Net Weight: 72kg
