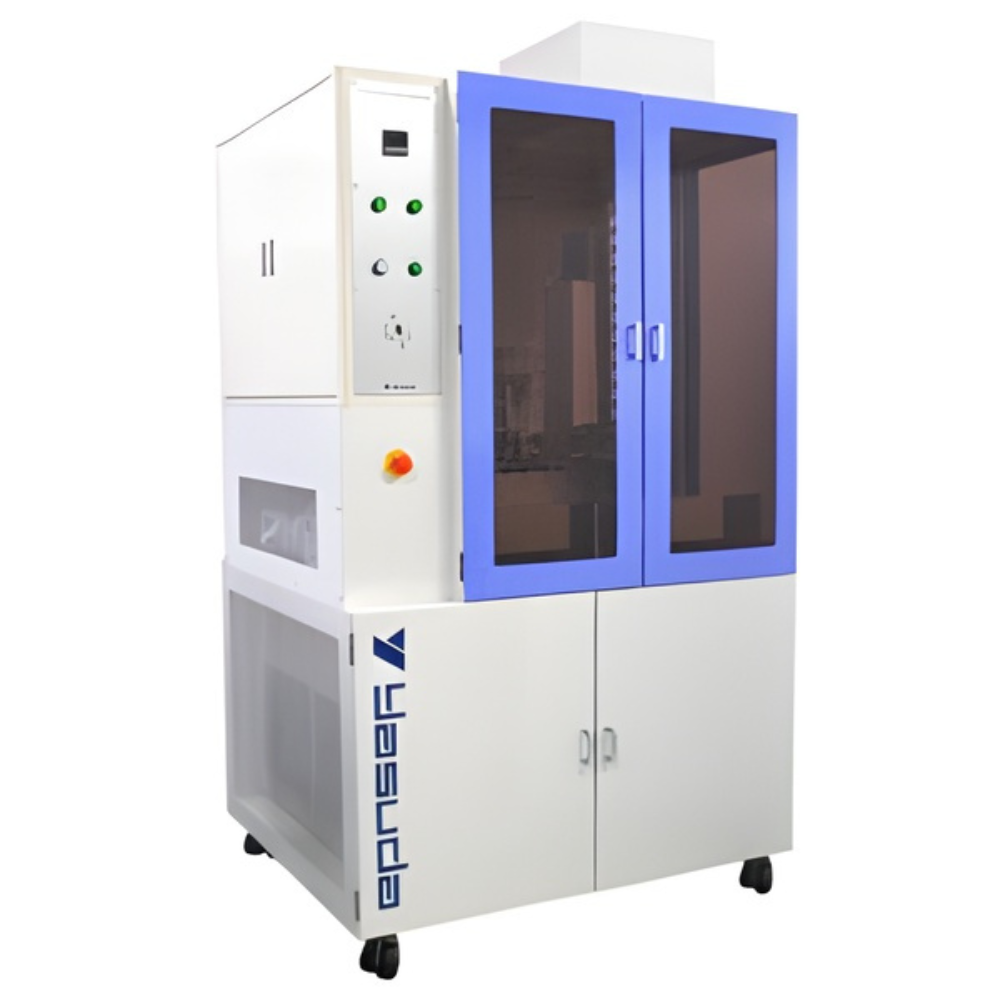

เครื่องทดสอบความเปราะจากความเย็นระบบอัตโนมัติเต็มรูปแบบ No.121-AUTO (Yasuda Seiki)

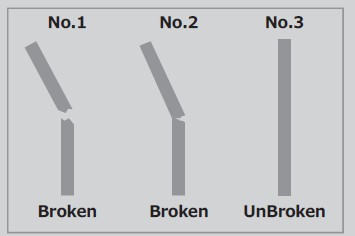

Low-temperature material fracture testing machine is used to assess the cold resistance of materials such as rubber or wire insulation when subjected to impact at low temperatures (brittleness point).
The features a highly efficient cooling system (with options for dry ice or a refrigerator), and an automatic model (No. 121-Auto) capable of continuously testing up to 200 samples, saving time and increasing analysis accuracy.

มาตรฐาน JIS C3005, K6261, K6723, K7216, ASTM D746, D2137, ISO 812, 974

Key Feature

  • ทดสอบต่อเนื่องอัตโนมัติสูงสุด 200 ชิ้นงาน (40 Holders) ช่วยลดเวลาและภาระงานของเจ้าหน้าที่ห้องแล็บได้อย่างมหาศาล

  • ทำความเย็นแม่นยำลึกถึง -70°C สำหรับวัดค่าความเปราะเนื่องจากความเย็น (Brittleness Temperature) ของพลาสติก ยาง และสายไฟ

  • ควบคุมและวิเคราะห์ผลผ่านซอฟต์แวร์ PC ตั้งค่าสภาวะการทดสอบ บันทึกผล และส่งออกข้อมูลได้อย่างง่ายดาย

  • รองรับมาตรฐานสากลครบครัน ทั้ง JIS, ASTM และ ISO การันตีความน่าเชื่อถือระดับสากลสำหรับงาน QC และ R&D

Reference Standards

JIS C3005、K6261、K6723、K7216、ASTM D746、D2137, ISO 812、974



Specification

Specification Details

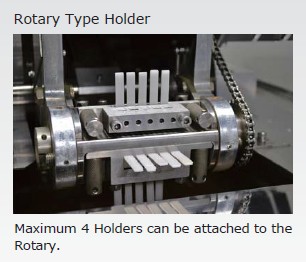

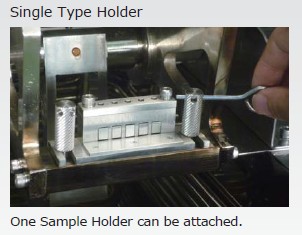

Number of Samples 5 samples × 40 holders (200 pieces total)
Test Sample Type A: Width 6.0 ± 0.4 mm × Length 38 ± 2 mm × Thickness 2.0 ± 0.2 mm
Striking Edge • Radius: 1.6 ± 0.1 mm
• Clearance from sample clamp: 6.4 ± 0.2 mm
• Distance (Impact point to clamp): 8.0 ± 0.2 mm

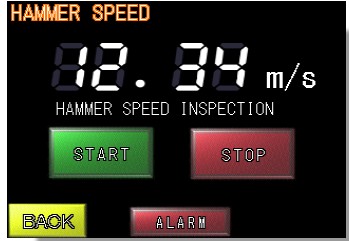

Striking Speed 2.0 ± 0.2 m/s
Temperature Up to -70°C (refrigeration control)
Heat Transfer Medium Approximately 15 liters
PC Software Available for Windows
Accessories Tightening pin, torque screwdriver
Options Type B sample holder, sample punch
Power Source AC 200 V, 3-phase, 30 A, 50/60 Hz
Air Source 0.5 MPa or above
Dimensions & Weight (Approx.) W1,160 × D1,030 × H2,150 mm, 612 kg

FAQ Section

Q: เครื่องทดสอบความเปราะ Yasuda Seiki No.121-AUTO เหมาะกับวัสดุประเภทใดบ้าง?

A: เหมาะอย่างยิ่งสำหรับ ยางพลาสติกสังเคราะห์ (Rubber & Elastomer), พลาสติกโพลิเมอร์, เลเยอร์ฉนวนสายไฟฟ้า และวัสดุคอมโพสิตที่ต้องทนทานต่อสภาวะจุดแช่แข็งหรืออุณหภูมิต่ำสุดขีด

Q: ระบบอัตโนมัติของ No.121-AUTO แตกต่างจากรุ่นธรรมดาอย่างไร?

A: รุ่น No.121-AUTO เป็นระบบ Full Automatic (Robotic) ที่สามารถใส่ Holder ได้มากถึง 40 ชุด (ทดสอบได้ 200 ชิ้นงานต่อเนื่อง) พร้อมสั่งการและเก็บข้อมูลผ่าน PC Software ในขณะที่รุ่นมาตรฐานจะต้องเปลี่ยนชุดทดสอบด้วยตนเองบ่อยครั้ง

Q: เครื่องรุ่นนี้รองรับมาตรฐานการทดสอบมาตรฐานใดบ้าง?

A: รองรับมาตรฐานสากลสำคัญครอบคลุม ได้แก่ JIS K6261, JIS C3005, ASTM D746, ASTM D2137, ISO 812 และ ISO 974 ทำให้ผลการทดสอบได้รับการยอมรับในระดับอุตสาหกรรมทั่วโลก
