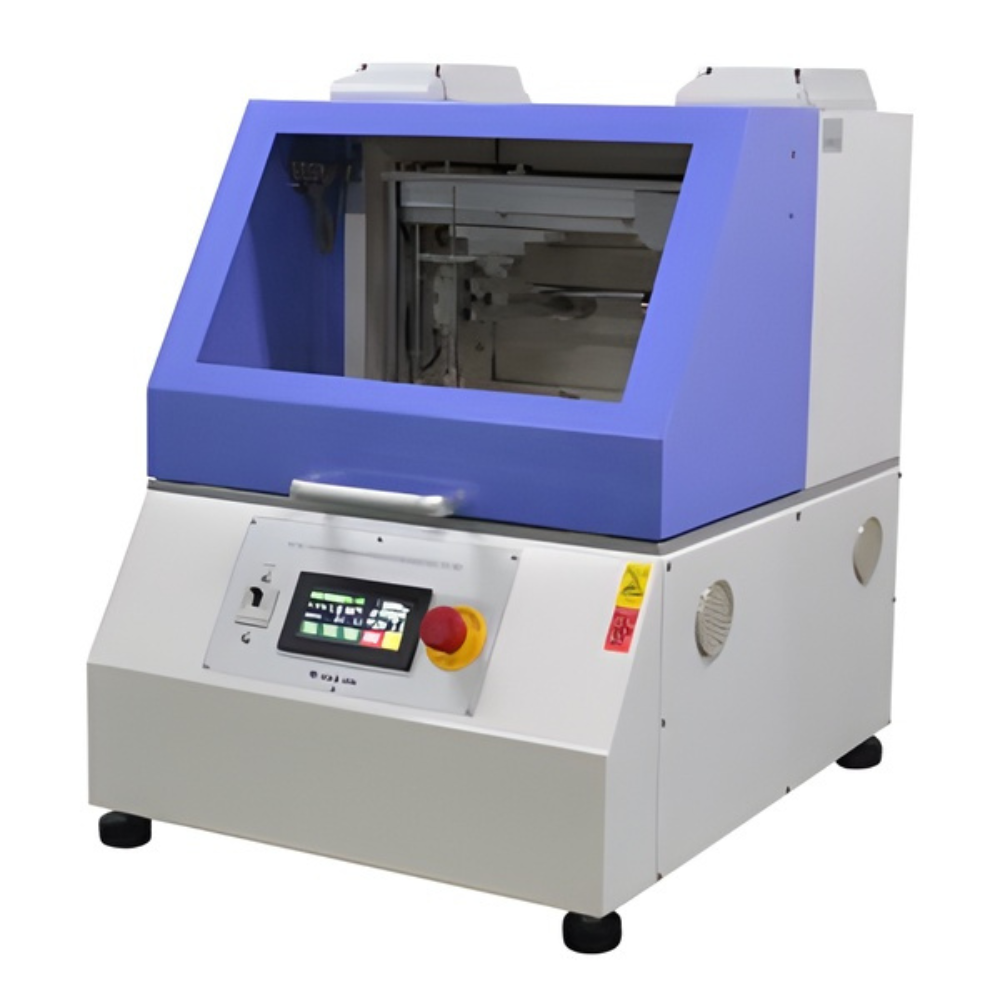

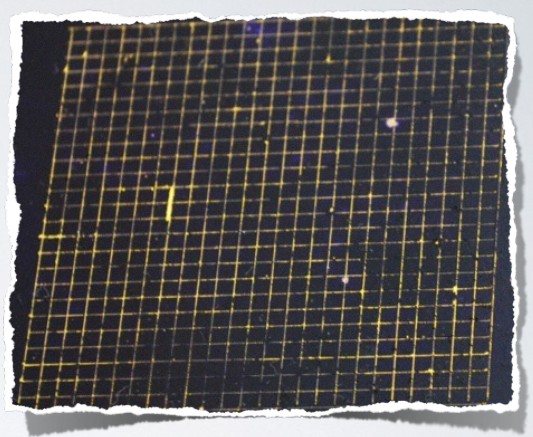

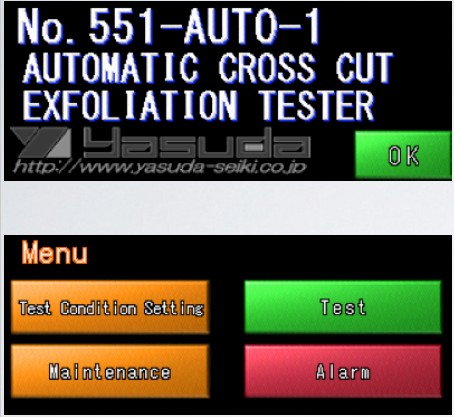

The cross-cutting durability testing machine uses a needle-tipped cutting device. An automatic cross-cutting machine is capable of cutting coated surfaces in a grid pattern using the cross-cut method. Perpendicular blades are placed on the surface of the test sample and pressure is applied to cut. Test conditions are set so that all cuts reach the base material. After cutting, the sample is brushed, covered with tape, and peeled off within 5 minutes for evaluation. Model No. 551-AUTO-1 allows setting the number of cuts and distance via the touchscreen. Model No. 551-AUTO-2 adds a 90˚ automatic rotation function. Both models are more accurate than manual crosscutting machines.
Model : No.551-AUTO-1 , No.551-AUTO-2
Specimen Table
No.551-AUTO-1 : 240 × 200 mm
No.551-AUTO-2 : 240 × 200 mm
90° Rotation
No.551-AUTO-1 : Manual
No.551-AUTO-2 : Automatic
Max. Specimen Size
No.551-AUTO-1 : 210 × 200 mm
(Cross Cut Area 140 × 140 mm)
No.551-AUTO-2 : 210 × 200 mm
(Cross Cut Area 140 × 140 mm)

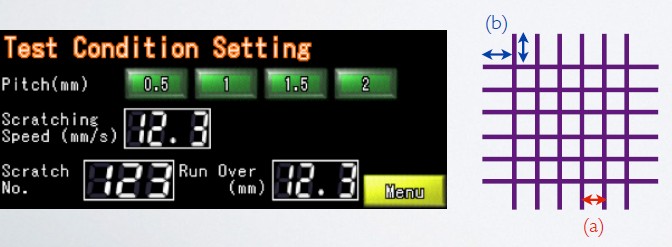

Scratching Pitch
No.551-AUTO-1 : Chosen from 0.5, 1.0, 1.5, 2.0, 3.0 mm
No.551-AUTO-2 : Chosen from 0.5, 1.0, 1.5, 2.0, 3.0 mm
Scratching Number
No.551-AUTO-1 : Variable by Touch Panel (Standard: 6, 11 lines)
No.551-AUTO-2 : Variable by Touch Panel (Standard: 6, 11 lines)
Scratching Speed
No.551-AUTO-1 : 5 to 150 mm/s (Unit 0.1 mm/s)
No.551-AUTO-2 : 5 to 150 mm/s (Unit 0.1 mm/s)
Test Load
No.551-AUTO-1 : Initial 10 gf to 400 gf
Deadweight Balance + Additional Weights
Chosen from 10 to 400 gf, 50 to 1,050 gf
No.551-AUTO-2 : Initial 10 gf to 400 gf
Deadweight Balance + Additional Weights
Chosen from 10 to 400 gf, 50 to 1,050 gf
Scratcher
No.551-AUTO-1 : Cutter
No.551-AUTO-2 : Cutter
Safety Device
No.551-AUTO-1 : Emergency Stop SW
No.551-AUTO-2 : Emergency Stop SW
Accessories
No.551-AUTO-1 : Weight*, Height Adjustment Gauge, Cutter Blade Holder,
Spare Cutter Blade, Cutter Blade Setting Jig, Hexagon Wrench, Spanner Wrench
No.551-AUTO-2 : Weight*, Height Adjustment Gauge, Cutter Blade Holder,
Spare Cutter Blade, Cutter Blade Setting Jig, Hexagon Wrench, Spanner Wrench
Option

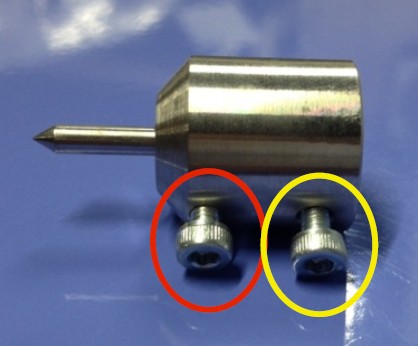

No.551-AUTO-1 : Needle, Needle Holder, Sapphire Needle,
Sapphire Needle Holder, Safety Cover
No.551-AUTO-2 : Needle, Needle Holder, Sapphire Needle,
Sapphire Needle Holder, Safety Cover
Power Source
No.551-AUTO-1 : AC 100 V, 1-Phase, 10 A, 50/60 Hz
No.551-AUTO-2 : AC 100 V, 1-Phase, 10 A, 50/60 Hz
Dimensions/ Weight (Approx.)
No.551-AUTO-1 : Safety Cover Not Attached
W630 × D750 × H700 mm/ 90 kg
Safety Cover Attached
W630 × D750 × H760 mm/ 95 kg
No.551-AUTO-2 : Safety Cover Not Attached
W630 × D750 × H700 mm/ 90 kg
Safety Cover Attached
W630 × D750 × H760 mm/ 95 kg
