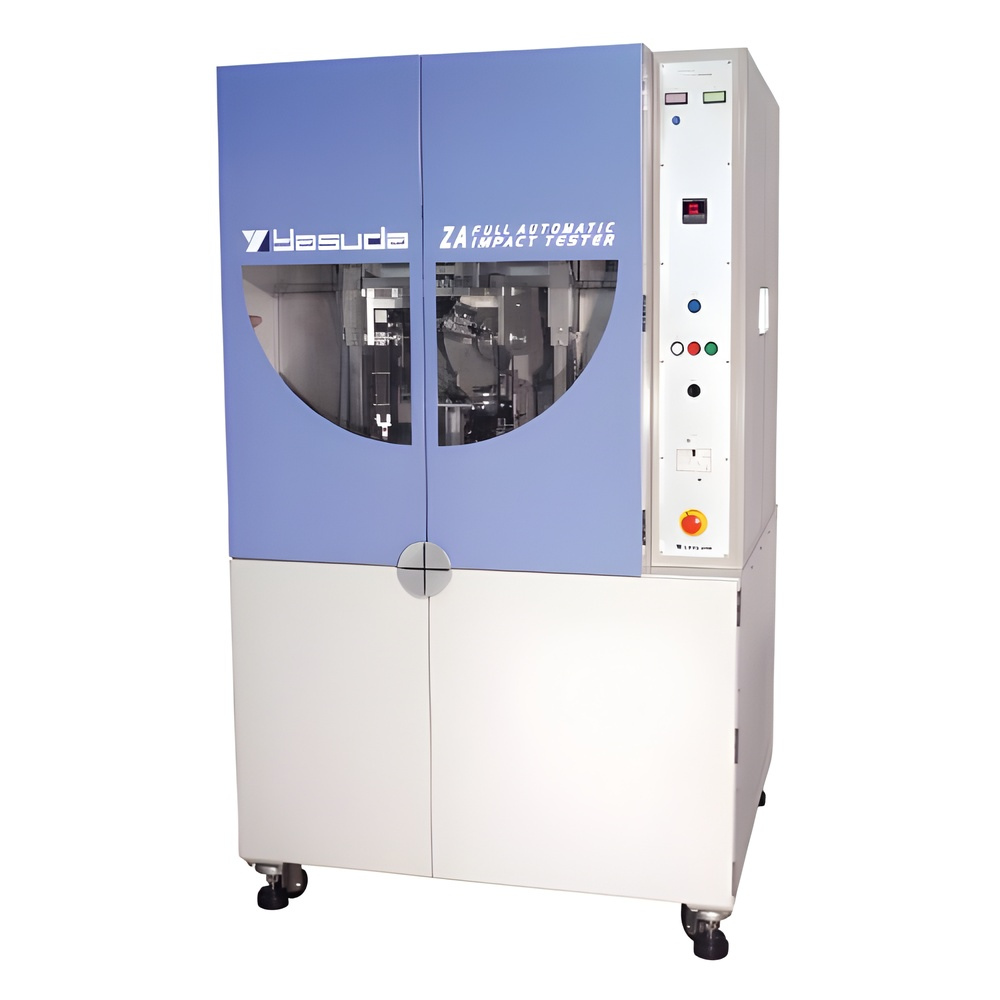

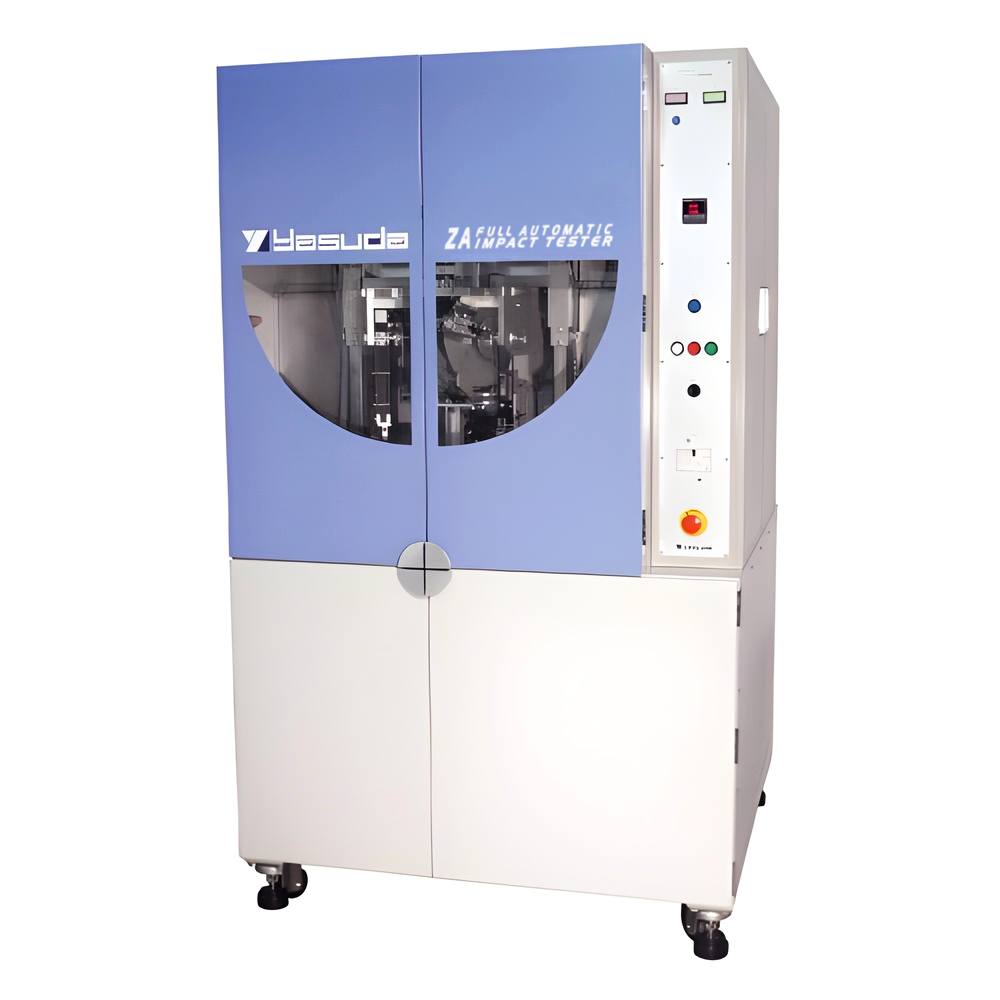

IMPACT TESTER (FULL AUTOMATIC) No.258-ZA | Yasuda Seiki

The No.258-ZA is a fully automated impact tester for plastics and polymers, manufactured by Yasuda Seiki (Japan). It is designed to measure the impact resistance and toughness of materials using both Charpy and Izod test methods. The instrument complies with international standards, including ISO 179-1, ISO 180, JIS K 7111-1, JIS K 7110, and ASTM D256 / D6110. It is ideally suited for QC and R&D laboratories within the plastic resin, petrochemical, and automotive industries—environments that require the continuous, high-precision testing of a large volume of specimens while eliminating the risk of human error.

SKU: 258-ZA Category: Tags: , , , Brand:

Key Feature

  • Test up to 210 pieces continuously:: Simply place the workpiece into the cartridge and configure the settings via the software; the system will then automatically feed the workpiece and carry out the testing process.

  • Automatic Charpy hammer changer (3 sizes): The hammer energy level can be adjusted continuously without stopping the machine, enhancing efficiency and reducing operating time.

  • Automatic sizing and positioning in 5 seconds: Workpiece dimension measurement system, with precise positioning of the notch at the optimal point of impact.

  • Supports low-temperature testing (-40°C to 80°C): Transfer the specimen from the temperature-controlled chamber and subject it to impact within 5 seconds, in strict accordance with international standard requirements.

Reference Standards

JIS K 7110, JIS K 7111-1, ISO 179-1, ISO 180, ASTM D6110-10, ASTM D256



Specification

Product Specifications
Temperature Range -40° 〜 80° (Refrigerator)
Hammer Capacity 0.5 to 25 J (Charpy), Capacity 1 to 7.5 J (Izod)
Automatic Lift-Up Device, Automatic Stop Device
Anvil Automatic Specimen Setting Device, Rejection Device for Tested Specimens
Test Specimens 70 pcs × 3 Cassettes (Total 210 pcs)
*When W10 × T4 × L80 mm, Automatic Cassette Changing Device
Software Windows Compatible
Option Hammer Height Adjustment Device (Only for Charpy), Hammer Changing Device (3 Capacities), Low Temperature Chamber, Constant Temperature & Humidity Chamber, Specimen Size Measuring Device, Collect Table for Tested Specimens
Power Source Main Unit: AC 200 V, 1-Phase, 10 A, 50/60 Hz
Low Temp. Chamber: AC 200 V, 3-Phase, 30 A, 50/60 Hz
Air Source 0.5 MPa or greater
Dimensions / Weight (Approx.) W1,150 × D1,050 × H1,950 mm, 700 kg



FAQ Section

Q1: Can the No.258-ZA model perform both Charpy and Izod tests using a single unit?

A: Yes, the No.258-ZA model is designed to support both Charpy and Izod impact testing. The anvil and hammer assemblies can be interchanged to fully comply with various standards, such as ISO, JIS, or ASTM.

Q2: Is it possible to test plastic specimens at low temperatures using this machine, and does it comply with relevant standards?

A: This can be achieved by installing the Low-Temperature Chamber option (-40°C to 80°C). The system places the specimen inside a temperature-controlled chamber, and an automated mechanism then transfers and positions it for impact—all within 5 seconds. This process complies with stringent international standards, ensuring the most accurate low-temperature test results.

Q3: How long does it take to process a full batch of up to 210 workpieces, and is it necessary to monitor the machine while it is running?

A: Operators do not need to monitor the machine; simply load the workpieces into the cartridges (up to 3 cartridges, holding a total of 210 pieces) and configure the parameters via the PC software. The machine will then automatically and continuously perform dimensional measurements, positioning, impact marking, and data recording. This allows staff to safely and efficiently attend to other tasks simultaneously.
