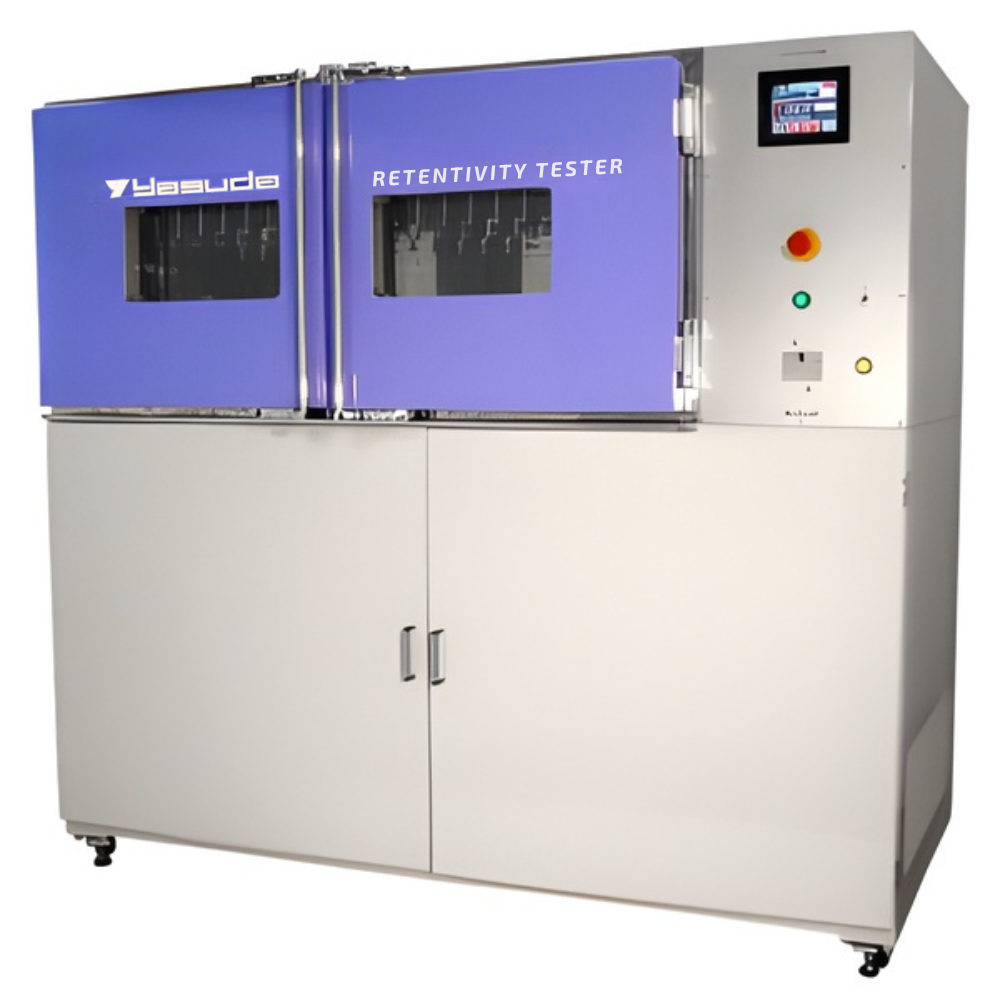

The adhesive tape tester is used to evaluate the adhesion and durability of adhesive tapes and sheets. One end of a 25 mm test sample is mounted on a test sheet, and the other end is suspended vertically with a specified weight. The machine measures the distance of detachment, or the time it takes for the sample to detach from the test sheet.
Hangings : 3, 6, 10 or 20 Hangings (4 kinds)
Specimen : W25 mm or 12 ± 0.5 mm, L150 mm
Test Plate : W50 mm, L125 mm, T1.1 mm or More, Material: SUS304 Made
Weight Load : Initial 200 gf to Max. 1 kgf (Standard 1,000 g ± 5 g)
Chuck : Upper: Hook type
Lower: Flat type (W30 mm)
Upper and Lower Chuck Distance : 200 mm
Chuck Stroke : Max. 45 mm, Electric Concurrent Elevating Device (Up and Down Automatic Stop)
Temperature Range: Max. 150 °C
Timer : Preheating Time Setting, Drop Time Measuring, Test Time Setting
Option: Displacement Measurement Spec, Low Temperature Oven, Constant Temperature & Humidity Oven, Oven Light,
90° Peeling Spec
Power Source: Differ by Specifications.
Dimensions/ Weight (Approximate): Differ by Specifications.
