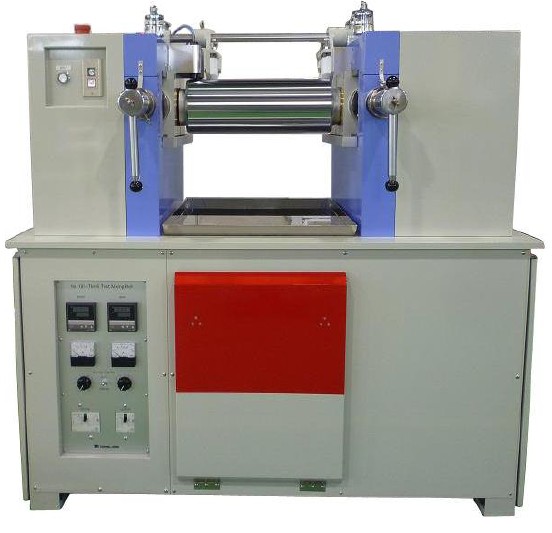

TEST MIXING ROLL, Two roll Mill No.191-TM/WM | YASUDA SEIKI

two-roll mill is an open-type mixing machine consisting of two rollers. Designed with a compact footprint, it enables precise quality control and the development of material formulations. It effectively addresses challenges related to the mixing of incompatible chemicals, polymers, or plastic pellets, ensuring a uniform and homogeneous blend. The machine maintains consistent temperature control and incorporates robust safety features, including multiple emergency shutdown mechanisms. It can also be configured with either an electric or steam-based heating system.

Key Feature

  • mixing roll Designed for laboratory use, it facilitates the mixing and milling of rubber and plastic materials for testing purposes in a simple and safe manner.

  • High security: Equipped with international-standard emergency stop systems—such as large push buttons and knee-operated stop switches—as well as Safety Wristband (Smart Wristband) to prevent accidents during operation.

  • heat setting: Supports both electric heating systems and systems using steam, water, or oil.

  • Strong and durable structure: Easy to install in confined spaces, with roller dimensions and a rotational speed system designed to extend service life.

Specification

Specification Item Model No.191-TM Model No.191-WM
Roll Size ø3″×8″, ø4″× 8″, ø5″×12″, ø6″×15″, ø8″×20″
Heating Method Electric heating (by cartridge heaters) Steam*1, water, or oil heating (by flowing the heat transfer medium into a rotary union)
Roll Surface Temperature Max. 200℃ (option: max. 300℃) Max. 200℃
Rotational Speed Ratio Approx. 1:1.25*2
Rotational Speed Front roll 12.5–31.25 rpm    Back roll 10–25 rpm*2
Safety Devices Knee stop switches, mushroom head emergency stop button, overload protection metal (5″ or above)
(Options: emergency stop bars, area sensor, reverse rolling, Reflector detection type brake device)
Lubricator Needle valve lubricator
Accessories Teflon guide plate (1 set), pan for the milled sample, hot bearing oil
Options Adjustable rotational speed, independent rolling, digital temperature controller (for TM only), lubricant circulating unit, heat transfer medium (water or oil) circulating unit
Power Source AC 200 V 3-phase 20–50 A 50/60 Hz
Dimensions and Weight (Approx.) W860–1,500×D700–1,260×H1,220–1,590 mm, 330–1,760 kg Varies according to the product specifications.

* Specifications are subject to change without notice.

FAQ Section

For what types of applications is the Test Mixing Roll No. 191-TM/WM suitable?

A: Suitable for use in R&D laboratories for mixing and extruding rubber and plastic materials, as well as for preparing samples for subsequent physical and chemical property testing.

Q: What heating system options are available for this model?

A: It is divided into model No.191-TM, which utilizes an electric heating system, and model No.191-WM, which supports heating via water, oil, or steam circulated through a piping system.

Q: What safety features does the device have?

A: The machine is equipped with high-standard safety systems—including knee-operated emergency stop switches, mushroom-head emergency stop buttons, and an overload protection system—enabling operators to halt operations immediately in the event of an emergency.
