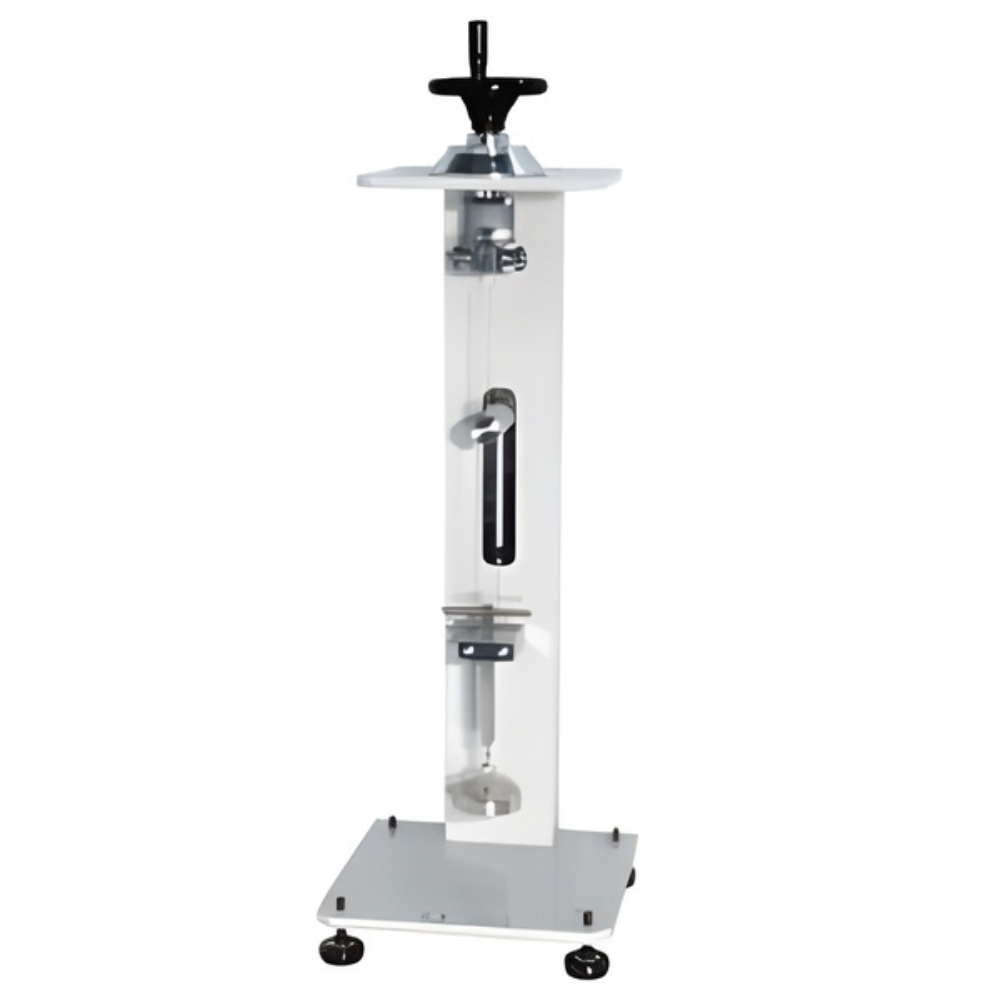

เครื่องทดสอบออกแบบมาเพื่อการทดสอบฉนวนเคลือบอีนาเมลด้วยวิธี Twist ตัวอย่างทดสอบจะถูกพับครึ่งและติดตั้งเข้ากับหัวจับของอุปกรณ์ จากนั้นจะถูกบิดด้วยแรงตึงที่ตั้งค่าไว้เพื่อการทดสอบ ตัวอย่างที่สร้างขึ้นสามารถนำไปใช้ทดสอบกับเครื่อง No.199 VOLT-ENDURANCE AND DESTRUCTION TESTER ได้ต่อไป
Number of Twist Stations : 1-Station , 3 or 5-Station
Twist Method
1-Station : Twist by handwheel
3 or 5-Station : Twist by an electric motor
(all stations twist simultaneously)
Load
1-Station : 0.029N–108 N (select 2 weights)
3 or 5-Station : 0.029N–108 N (select 2 weights)
Wire Diameter
1-Station : 0.050–3.200 mm
3 or 5-Station : 0.050–3.200 mm
Rotational Speed
1-Station : ―
3 or 5-Station : 60 rpm
Safety Devices
1-Station : ―
3 or 5-Station : Safety cover with interlock, earth leakage breaker, emergency stop botton
Accessories
1-Station : 39 N weight
3 or 5-Station : ―
Power Source
1-Station : ―
3 or 5-Station : AC 100 V 1-phase 15 A 50/60 Hz
Dimensions and Weight (Approx. )
1-Station : W250×D250×H750mm, 20kg
3 or 5-Station : Varies according to the product specifications.
